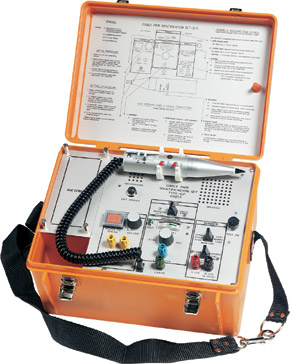

GP Test Set |
The Cable Identification set, Type G.P. utilises the principle of high impedence tone search in achieving its primary function of identifying a specific cable pair in a random joined cable with minimum interference to working circuits. The G.P Set can send and receive simultaneously for identification purposes and can therefore be used as a single unit or where required, in conjunction with a number of other sets. In addition to the identification function, the set has a built-in loudspeaker intercom system. Standard 4R25 6V lantern battery powered.
|
| Pandora Linesmans Test Set |
The Pandora Linesmans Test Set is a test instrument used to assist in fault testing and to help locate cable pairs. It is completely self-contained and it consists of a tone generator and simplified "Test desk" meter circuit For cable pair identification, a tone is generated internally with a frequency of approximately 1.5Khz. This is near the centre of the audio range, at about the most sensitive region for most peoples hearing. Powered by a 9V 439 battery
|
|
LTS No2 Linesmans Test Set |
The Lines Test Set No 2 is a portable voltmeter/ohmeter used for testing telephone lines from terminal points such as cabinets, pillars, cable boxes, etc. The set is very user friendly, has a large scale for clear readings and is rugged enough to withstand operating conditions in the field. The set features volts, megaohms, k-ohms and low ohms, colour coded scale, AC detection, push button line reversal, rotary selector switches, multi flexible test leads, steel framed leather carry case and is built to Telstra and Australian standards (AS1042).
Movement: 100µA , DC Volts:
0-80V 10000. per volt ±1%, Kilohms: 0 -
5K. ±2%, Megaohms: 0 - 5M. ±2%,
Colour zone use with the megaohms scale -
Green = Good, Yellow = Fair, Red = Bad.
Temperature Range: Operating
0 - 40°C, Storage 0 - 60°C, Standard 6F22DP
9V battery powered. |
| TLT Test Lamp Tester |
The Test Lamp Tester is is a continutity tester designed to be used by linesmen to check power lines to see whether they are live or not. If a load between 0 - 1.5K. is across the terminals a buzzer and LED will activate. If a load greater than 1.6K. or greater is present the buzzer and LED will not be activated.
Output levels 80 - 100dB at 0.5metres,
Sound frequency 4KHz ±500Hz, operating
Temperature 0 - 45°C.
Standard 6F22DP 9V battery powered.
|
