Fanso ER14250H/3P
Fanso ER14250H/2PT 1/2AA size 3.6V 1200mAh Lithium Thionyl Chloride Battery - Bobbin Type with PCB D- 8mm S+
ER14250H/3P primary lithium battery with PCB D- 8mm S+
Wuhan Fanso high capacity range.
Features:
- Long shelf life: self discharge rate less than 1% at 25°C.
- High energy density (700Wh/kg).
- Long operating life.
- Stainless steel container and end caps.
- Wide temperature range: -55ºC ~ +85ºC.
- Hermetic glass-to-metal sealing.
- Non-flammable electrolyte.
- Compliant with IEC86-4 safety standard.
- UL Component Recognition MH46165.
- High and stable operating voltage.
Suitable for applications including:
- Utility metering
- Alarm and security devices
- Memory backup power
- Professional electronics
- GPS tracking system
- Military system
- Automotive electronics
- Real-time clock
Store in a cool dry place not exceeding +30ºC.
| Selling Unit | EACH |
|---|---|
| Model No | ER14250H/3P |
| Brand |
|
| Description | Fanso ER14250H/2PT 1/2AA size 3.6V 1200mAh Lithium Thionyl Chloride Battery - Bobbin Type with PCB D- 8mm S+ |
| Application | Memory Back Up (MBU), IOT Devices, Smart Meters, Security |
| Chemistry | Lithium Thionyl Chloride |
| Voltage | 3.6V |
| Watt Hour | 4.32Wh |
| Nominal Capacity | 1.2Ah |
| Maximum Continuous Discharge Current | 15mA |
| Maximum Pulse Discharge Current | 50mA |
| Size | 1/2AA |
| Width | 14.1mm |
| Height | 25.1mm |
| Weight | 10.2g |
| Categories |
Portable Power Product Batteries Primary (Non-Rechargeable) Lithium Batteries Lithium Thionyl Chloride Batteries Lithium Thionyl Chloride Cylindrical Bobbin-MBU type Memory Back Up (MBU) Batteries |

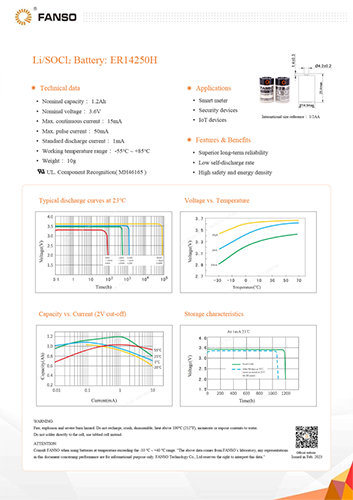

| Data Sheet |
|
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
SHIPPING RESTRICTIONS APPLY
Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.
NON DG UN3090 LITHIUM METAL BATTERIES - Contains cells/batteries exempted from ADG 7.7 & IMDG Code 2020 using Special Provision 188.
Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.
