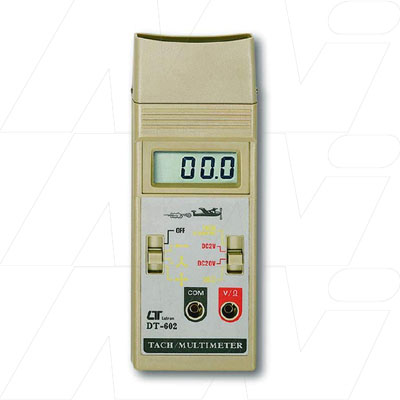

Lutron DT602
R/C Hobby Tachometer
DIGITAL TACH / MULTIMETER
Model: DT‑602
Features
- Digital display, easy reading & high precision.
- Contactless RPM measurement, safety and high accuracy.
- Useful equipment for hobby airplane users.
- Available for RPM, battery, DCV, resistance & continuity measurement.
- Battery operated, compact and light weight, easy to carry.
- Built‑in over input & low battery indication.
General Specifications
| Display | LCD (Liquid Crystal Display), 13 mm (0.5") digit size. |
| Max. Indication | 1999 or −1999. |
| Measurement | TACH (2, 3, 4 propeller), DCV, OHM, CONTINUITY. |
| Polarity | “−” indicates reverse polarity. |
| Zero Adjustment | Automatic zero adjust. |
| Over‑Input | Indication of “1” or “‑1”. |
| Sampling Time | 0.4 second. |
| Operating Humidity | Less than 80% RH. |
| Power Supply | 006P DC 9V battery. |
| Power Consumption | Approx. DC 6 mA. |
| Photo Sensor for TACH | CDS. |
| Dimension | 185 × 70 × 25 mm (7.3 × 2.8 × 1 inch). |
| Weight | 195 g (0.43 lb). |
| Standard Accessories | Test lead (red & black) — 1 pair. Instruction manual — 1 PC. |
Electrical Specifications (23 ± 5°C)
TACH
| Propeller No. | Range | Resolution | Accuracy |
|---|---|---|---|
| 2 | 100 – 60,000 RPM | 100 RPM | ± (1% + 1 d) |
| 3 | 100 – 40,000 RPM | ||
| 4 | 100 – 30,000 RPM |
DC Voltage
| Range | Accuracy | Resolution | Input Impedance | Overload Protection |
|---|---|---|---|---|
| 2 V | ± (1% + 1 d) | 0.001 V | 1 MΩ | DC 300V AC 250V RMS |
| 20 V | ± (1% + 1 d) | 0.01 V |
Resistance
| Range | Accuracy | Resolution | Open Circuit Voltage | Overload Protection |
|---|---|---|---|---|
| 2 kΩ | ± (1% + 1 d) | 1 Ω | ≈ 2.8 V | 250V DC / AC RMS (within 10 sec.) |
Optional Accessories
| Carrying Case | Vinyl soft case Dimension: 185 × 90 × 60 mm (7.3 × 3.5 × 2.4 inch) Weight: 70 g (0.15 lb) |
| Test Lead | TL‑02 High quality and better performance test lead with silicon rubber wire. |
| Selling Unit | EACH |
|---|---|
| Model No | DT602 |
| Brand |
|
| Description | R/C Hobby Tachometer |
| Application | Digital Meter |
| Width | 70mm |
| Height | 25mm |
| Length / Breadth / Depth | 185mm |
| Weight | 43.5g |
| Categories |
R/C Hobby Meters Test & Measurement Equipment Digital Test Equipment Tachometers |
| Data Sheet |
|
