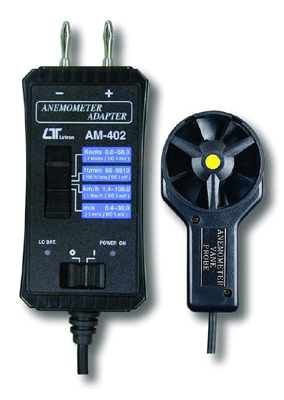

Lutron AM402
Anemometer Adaptor
Specifications
| Range | 0.2 – 30.0 m/s, 0.7 – 108.0 km/h, 80 – 5910 ft/min, 0.8 – 58.3 knots. |
| Output | m/s – 1 mV per 1 m/s, km/h – 1 mV per 1 km/h, ft/min – 1 mV per 100 ft/min, knots – 1 mV per 1 knot. |
| Accuracy (≤ 25 m/s) | m/s: ± (2% + 0.1 mV) km/h: ± (2% + 0.3 mV) ft/min: ± (2% + 0.2 mV) knots: ± (2% + 0.2 mV) |
| Sensor Structure | Conventional twisted vane arms & low friction ball bearing design. |
| Battery | 006P DC 9V battery (heavy duty type). |
| Power Failure | Built‑in low battery indicator. |
| Operating Temp. | 0°C to 50°C (32°F to 122°F). |
| Operating Humidity | Max. 90% RH (0°C to 35°C). |
| Dimension | Main instrument: 100 × 50 × 25 mm (3.9 × 2.0 × 1.0 inch) Sensor head: Round, 72 mm Dia |
| Standard Accessories | Instruction manual — 1 PC. Sensor probe — 1 PC. |
| Application | To match DMM 200 mV range. Used as an ANEMOMETER to check air conditioning & heating systems, measure air velocities, wind speeds, etc. |
| Selling Unit | EACH |
|---|---|
| Model No | AM402 |
| Brand |
|
| Description | Anemometer Adaptor |
| Categories |
Test & Measurement Equipment Digital Test Equipment Anemometers |
| Data Sheet |
|
