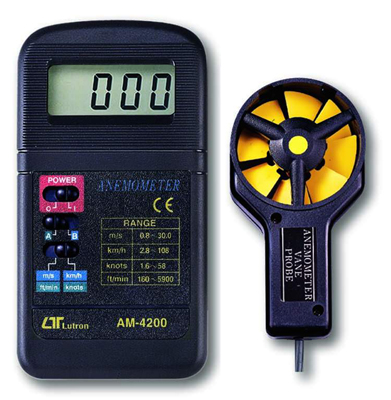

Lutron AM4200

Anemometer Pocket Size

High quality with economical cost.
Pocket & compact housing case.
Separate probe, convenient for remote measurement.
Low‑friction ball vane wheel is accurate in both high & low velocities.
Multi‑functions for air flow measurement: m/s, km/h, ft/min, knots, mile/h.
Readings with LCD display.
Battery power source from 006P DC 9V batteries.
Uses durable, long‑lasting components, including a strong, lightweight ABS‑plastic housing case.
Wide applications: use this anemometer to check air conditioning & heating systems, measure air velocities, wind speeds, temperature, etc.

Display	13 mm (0.5") LCD, 3 1/2 digits.
Measurement	m/s (meters per second), km/h (kilometers per hour), ft/min (feet per minute), knots (nautical miles per hour).
Sensor Structure	Conventional twisted vane arm and low friction ball bearing design.
Sampling Time	Approx. 0.4 sec.
Operating Temperature	0°C to 50°C (32°F to 122°F).
Operating Humidity	Less than 80% RH.
Power Supply	006P DC 9V battery (heavy duty type).
Power Current	Approx. DC 6 mA.
Weight (Main Instrument)	381 g / 0.84 lb.
Dimension (Main Instrument)	180 × 73 × 23 mm (4.3 × 2.9 × 1.4 inch).
Sensor Head	Round, 72 mm Dia.
Weight (Sensor)	260 g / 0.58 lb (including battery).
Accessories Included	Instruction manual — 1 PC. Sensor probe — 1 PC.

Measurement	Range	Resolution	Accuracy
m/s	0.8 – 30.0 m/s	0.1 m/s	±(2% + 1 d)
km/h	2.8 – 108 km/h	0.1 km/h	±(3% + 2 d) (Full scale)
knots	1.6 – 58 knots	0.1 knots	±(2% + 2 d)
ft/min	160 – 5900 ft/min	10 ft/min	±(2% + 20 ft/min)

Holster

High quality rubber protective holster. Model: HS‑02

Selling Unit	EACH
Model No	AM4200
Brand
Description	Anemometer Pocket Size
Width	73mm
Height	23mm
Length / Breadth / Depth	180mm
Weight	48.1g
Categories	Test & Measurement Equipment Digital Test Equipment Anemometers
