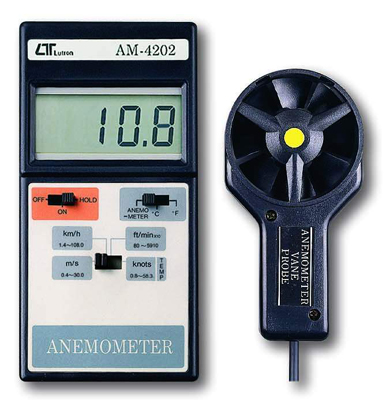

Lutron AM4202

Anemometer With Temperature

The portable anemometer provides fast, accurate readings, with digital readability and the convenience of a remote sensor separately.
Multi-functions for air flow measurement: m/s, km/h, ft/min, knots, mile/h.
Built‑in temperature °C, °F measurement. Thermocouple sensor for fast temp. measurement time.
Low‑friction ball‑bearing design allows free vane movement and is accurate at both high & low velocities.
A sensitive balanced vane wheel rotates freely in response to air flow.
Conventional twisted vane arms, always a source of unreliability, have been eliminated.
DATA HOLD function for stored display value on display. Large LCD display, easy to read.
LCD display for low power consumption & clear readout, even in bright light.
Uses durable, long‑lasting components, including a strong, lightweight ABS‑plastic housing case.
Pocket & compact housing case, easy to carry out.
Built‑in low battery indicator.
Wide applications: use this anemometer to check air conditioning & heating systems, measure air velocities, wind speeds, temperature, etc.

Display	18 mm (0.7") LCD (Liquid Crystal Display). 3 1/2 digits.
Measurement	m/s (meters per second), km/h (kilometers per hour), ft/min (feet per minute), knots (nautical miles per hour), Temp: °C, °F, Data hold.
Operating Temperature	0 to 50°C (32 to 122°F).
Operating Humidity	Less than 80% RH.
Air Velocity Sensor Structure	Conventional twisted vane arms have been eliminated. New low‑friction ball‑bearing design.
Temp. Sensor	Naked‑bead type thermocouple. AM‑4202 only.
Power Supply	DC 9V (006P, MN1604, PP3 battery or equivalent).
Power Consumption	Approx. DC 9 mA.
Weight	325 g / 0.72 lbs (including battery).
Dimension	Main instrument: 180 × 72 × 35 mm (6.8 × 3.2 × 1.2 inch) Sensor: Round, 72 mm Dia
Standard Accessories	Instruction manual — 1 PC. Sensor probe — 1 PC. Carrying case — 1 PC.

Measurement	Range	Resolution	Accuracy
m/s	0.4 – 30.0 m/s	0.1 m/s	±(2% + 1 d)
km/h	1.4 – 108.0 km/h	0.1 km/h	±(2% + 1 d)
mile/h	0.9 – 58.3 mile/h	0.1 mile/h	±(2% + 1 d)
knots	0.8 – 58.2 knots	0.1 knots	±(2% + 2 d)
ft/min	80 – 4930 ft/min	1 ft/min	±(2% + 20 ft/min)

Measurement	Range	Resolution	Accuracy
°C	0 to 50°C	0.1°C	±0.8°C
°F	32 to 140°F	0.1°F	±1.5°F

Selling Unit	EACH
Model No	AM4202
Brand
Description	Anemometer With Temperature
Width	35mm
Height	80mm
Length / Breadth / Depth	168mm
Weight	96g
Categories	Test & Measurement Equipment Digital Test Equipment Anemometers
