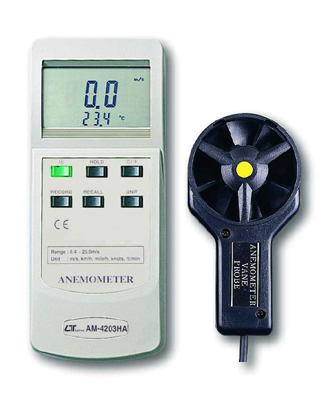

Lutron AM4203HA

Multi-Function Anemometer

Microprocessor circuit assures maximum possible accuracy, provides special functions and features.
Super large LCD display with contrast adjustment for best viewing angle.
Dual function meter’s display.
Heavy duty & compact housing case.
Records Maximum, Minimum and Average readings with RECALL.
Data hold.
Auto shut off saves battery life.
Operates from 006P DC 9V battery.
Low‐friction ball vane wheel is accurate in both high & low velocities.
The portable anemometer provides fast, accurate readings, with digital readability and the convenience of a remote sensor separately.
Multi-functions for air flow measurement: m/s, km/h, ft/min, knots, mile/h.
Build in temperature measurement.
Thermistor sensor for Temp. measurement, high precision.
Uses durable, long-lasting components, including a strong, lightweight ABS-plastic housing case.
Wide applications—use this anemometer to check air conditioning & heating systems, measure air velocities, wind speeds, temperature, etc.

Circuit	Custom one-chip of microprocessor LSI circuit.
Display	* 13 mm (0.5") Super large LCD display with contrast adjustment for best viewing angle. * Dual function meter’s display.
Measurement	m/s (meters per second), km/h (kilometers per hour), mile/h (miles per hour), knots (nautical miles per hour), ft/min (feet per minute), Temperature °C, °F.
Sensor Structure	Conventional twisted vane arm for air velocity. Thermistor for temperature.
Memory Recall	Records Maximum, Minimum and Average readings with RECALL.
Power Off	Auto shut off saves battery life or manual off by push button.
Sampling Time	One second.
Operating Temperature	0 to 50°C (32 to 122°F).
Operating Humidity	Less than 80% RH.
Power Supply	DC 9V battery (006P, MN1604 type).
Power Current	Approx. DC 3.5 mA.
Weight	260 g (0.57 lb).
Dimension	Main instrument: 180 × 73 × 38 mm (7.3 × 3 × 1.5 inch). Probe: Round, 72 mm Dia.
Accessories Included	Instruction manual — 1 PC. Sensor probe — 1 PC. Carrying case — 1 PC.

Measurement	Range	Resolution	Accuracy
m/s	0.4 – 30.0 m/s	0.1 m/s	± (2% + 2d)
km/h	1.4 – 108.0 km/h	0.1 km/h	± (2% + 2d)
mile/h	0.9 – 67.1 mile/h	0.1 mile/h	± (2% + 2d)
knots	0.8 – 58.5 knots	0.1 knots	± (2% + 2d)
ft/min	80 – 5900 ft/min	1 ft/min	± (2% + 20 ft/min)
Temperature (°C)	0 to 50°C	0.1°C	± 0.8°C
Temperature (°F)	32 to 122°F	0.1°F	± 1.5°F

Selling Unit	EACH
Model No	AM4203HA
Brand
Description	Multi-Function Anemometer
Width	78mm
Height	38mm
Length / Breadth / Depth	185mm
Weight	99.2g
Categories	Test & Measurement Equipment Digital Test Equipment Anemometers
Data Sheet
