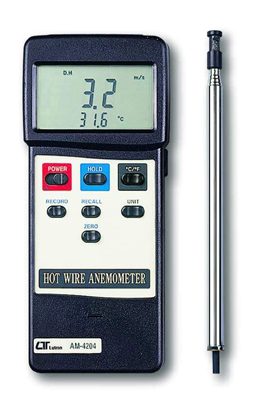

Lutron AM4204

Anemometer With Temperature Hot Wire & RS232 Output

Thermal anemometer, available for very low air velocity measurement.
Slim probe, ideal for grills & diffusers.
Combination of hot wire and standard thermistor, deliver rapid and precise measurements even at low air velocity value.
Microprocessor circuit assures maximum possible accuracy, provides special functions and features.
Super large LCD with dual function meter’s display, read the air velocity & Temp. at the same time.
Heavy duty & compact housing case.
Records Maximum and Minimum readings with recall.
Data hold.
Auto shut off saves battery life.
Operates from 6 PCS UM-4 batteries.
The portable anemometer provides fast, accurate readings, with digital readability and the convenience of a remote probe separately.
Multi-functions for air flow measurement: (m/s, km/h, ft/min, miles/h, knots).
Build in temperature measurement.
Thermistor sensor for Temp. measurement, high precision.
Use durable, long-lasting components, including a strong, lightweight ABS-plastic housing case.
Deluxe hard carrying case.
Applications: Environmental testing, Air conveyors, Flow hood, Clean rooms, Air velocity, Air balancing, Fans/blowers, Furnace velocity, Refrigerated case, Paint spray booths.
RS 232 PC serial interface.

Circuit	Custom one-chip of microprocessor LSI circuit.
Display	* 13 mm (0.5”) Super large LCD display. * Dual function meter’s display.
Measurement	m/s (meters per second) km/h (kilometers per hour) ft/min (feet per minute) mile/h (miles per hour) knots (nautical miles per hour) Temperature: Data hold.
Sensor	Structure: Tiny glass bead thermistor. Air velocity: Standard thermistor.
Memory	Maximum and Minimum with recall.
Sampling Time	Approx. 0.8 second.
Power off	Auto shut off saves battery life.
Data Output	RS 232 PC serial interface.
Operating Temperature	0 to 50°C (32 to 122°F).
Operating Humidity	Less than 80% RH.
Power Supply	1.5V AAA (UM-4) battery × 6 PCS.
Power Current	Approx. DC 8 mA.
Weight	355 g (0.78 lbs).
Dimension	Main instrument: 180 × 72 × 32 mm (7.1 × 2.8 × 1.3 inch). Probe: Round 12 mm Dia, 280 mm (min. length), 940 mm (max. length). Telescopic, adjustable.
Accessories Included	Instruction manual — 1 PC. Probe — 1 PC. Carrying case — 1 PC. Optional: RS232 cable, UPCB-02; USB-01.

Measurement	Range	Resolution	Accuracy
m/s	0.7 – 20.0 m/s	0.1 m/s	± (5% + 1 d) reading
km/h	2.5 – 72.0 km/h	0.1 km/h	± (5% + 1 d) reading
ft/min	144 – 3,937 ft/min	1 ft/min	± (5% + 1 d) reading
mile/h	1.6 – 44.7 mile/h	0.1 mile/h	± (5% + 1 d) reading
knots	1.4 – 38.8 knots	0.1 knots	± (5% + 1 d) reading
Temperature (°C)	0 to 50°C	0.1°C	± 0.8°C
Temperature (°F)	32 to 122°F	0.1°F	± 1.5°F

Selling Unit	EACH
Model No	AM4204
Brand
Description	Anemometer With Temperature Hot Wire & RS232 Output
Width	72mm
Height	32mm
Length / Breadth / Depth	180mm
Weight	101.6g
Categories	Test & Measurement Equipment Digital Test Equipment Anemometers
