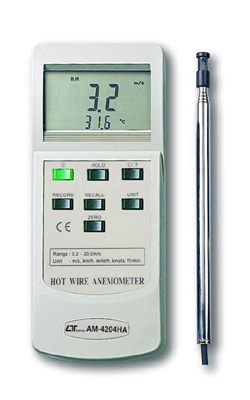

Lutron AM4204HA

Multi-Function Anemometer With Temperature Hot Wire

Thermal anemometer, available for very low air velocity measurement.
Slim probe, ideal for grills & diffusers.
Combination of hot wire and standard thermistor, deliver rapid and precise measurements even at low air velocity value.
Microprocessor circuit assures maximum possible accuracy, provides special functions and features.
Super large LCD with dual function meter’s display, read the air velocity & Temp at the same time.
Heavy duty & compact housing case.
Records Maximum and Minimum readings with recall.
Data hold.
Auto shut off saves battery life.
Operates from 6 PCS UM-4 batteries.
The portable anemometer provides fast, accurate readings, with digital readability and the convenience of a remote probe separately.
Multi-functions for air velocity (m/s, km/h, ft/min, knots, mile/h).
Build in temperature measurement.
The standard sensor for Temp. measurement, high precision.
Durable and long-lasting components, including a strong, light weight ABS-plastic housing case.
Probe length: 280 mm.
Deluxe hard carrying case.
Applications: Environmental testing, Air conveyors, Flow hood, Clean rooms, Air velocity, Air balancing, Fans/motors, Furnace velocity, Refrigerated case, Paint spray booths.

Display	Custom one-chip of microprocessor LSI circuit. 13 mm (0.5") Super large LCD display. Dual function meter’s display.
Measurement	m/s (meters per second) km/h (kilometers per hour) ft/min (feet per minute) mile/h (miles per hour) knots (nautical miles per hour) Temperature: Data hold.
Sensor Structure	Tiny glass bead thermistor (Resistance temperature detector).
Memory	Maximum and Minimum with recall.
Sampling Time	Approx. 0.8 seconds.
Power Off	Auto shut off saves battery life or manual off by push button.
Operating Temperature	0 to 50°C (32 to 122°F).
Operating Humidity	Less than 80% RH.
Power Supply	1.5V AAA (UM-4) battery × 6 PCS (Alkaline or heavy duty battery).
Power Current	Approx. DC 30 mA.
Dimension	185 × 78 × 38 mm (7.3 × 3.1 × 1.5 inch).
Probe	Separated, telescopic, adjustable; Round: 12 mm Dia; Retracted: 208 mm; Extended: 940 mm (max. length).
Accessories Included	Instruction manual × 1 pc; Hard carrying case × 1 pc.

Measurement	Range	Resolution	Accuracy
m/s	0.2 – 20.0 m/s	0.1 m/s	±(5% + 1 d) reading
km/h	0.7 – 72.0 km/h	0.1 km/h	±(5% + 1 d) reading
ft/min	40 – 3937 ft/min	1 ft/min	±(5% + 1 d) reading
knots	0.4 – 38.8 knots	0.1 knots	±(5% + 1 d) reading
mile/h	0.5 – 44.7 mile/h	0.1 mile/h	±(5% + 1 d) reading
Temperature (°C)	0 to 50°C	0.1°C	±1°C
Temperature (°F)	32 to 122°F	0.1°F	±1.5°F

Selling Unit	EACH
Model No	AM4204HA
Brand
Description	Multi-Function Anemometer With Temperature Hot Wire
Width	78mm
Height	38mm
Length / Breadth / Depth	185mm
Weight	10.38g
Categories	Test & Measurement Equipment Digital Test Equipment Anemometers
Data Sheet
