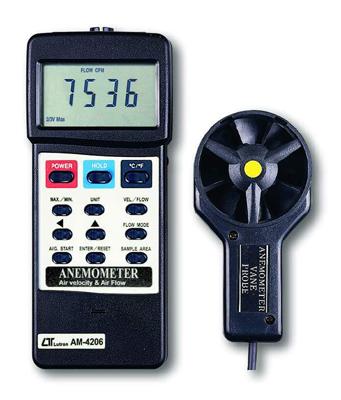

Lutron AM4206
Anemometer - Air Flow & Air Velocity
Features
- Air flow : CMM (m3/min.) and CFM (ft3/min.).
- Air velocity : m/s, ft/min, km/h, knots.
- Air temperature : °C, °F.
- 3 air flow mode : Instant, 2/3 Vmax, Average.
- Low-friction ball vane wheels is accurate in both high & low velocities.
- Large LCD with dual display.
- Record maximum and minimum reading with recall.
- Data hold.
- Microcomputer circuit provides special function & offer high accuracy.
- Auto shut off saves battery life.
- Thermistor sensor for temp. measurement, fast response time.
- Build-in low battery indicator.
- Operates from 006P DC 9V battery.
- RS 232 PC serial interface.
- Separate probe, easy for operation of the different measurement environment.
- Used the durable, long-lasting components, including a strong, light weight ABS-plastic housing case.
- Wide applications: use this anemometer to check air conditioning & heating systems, measure air velocities, wind speeds, temperature, etc.
General Specifications
| Circuit | Exclusive one-chip of micro-computer LSI circuit. | Power off | Auto shut off saves battery life or manual off by push button. |
|---|---|---|---|
| Display | 13 mm (0.5") Super large LCD display. Dual function meter's display. |
Sampling Time | Approx. 0.8 sec. |
| Operating Humidity | Less than 80% RH. | ||
| Measurement | Air velocity: m/s (meters per second) km/h (kilometers per hour) ft/min (feet per minute) knots (nautical miles per hour) mile/h (miles per hour) Air flow: CMM (m3/min.) CFM (ft3/min.) Air temperature: °C, °F Data hold |
Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Data Output | RS 232 PC serial interface. | Power Supply | Alkaline or heavy duty type DC 9V battery, 006P, MN1604 (PP3) or equivalent. |
| Power Current | Approx. DC 8.3 mA. | Weight | 381 g / 0.84 LB. |
| Dimension | Main instrument: 180 x 72 x 32 mm (7.1 x 2.8 x 1.3 inch) |
Sensor head: Round, 72 mm Dia. |
|
| Accessories Included | Instruction manual ............ 1 PC. Sensor probe .................. 1 PC. Carrying case ................. 1 PC. |
Optional Accessories | Software (Windows version, data record & data acquisition) SW-U101-WIN RS232 cable UPCB-01 |
| Sensor Structure | Air velocity & Air flow: Conventional twisted vane arm and low friction ball bearing design. Temperature: Thermistor. |
Memory Recall | Record maximum & minimum reading value with recall. |
Electrical Specifications (23 ± 5°C)
a. Air velocity
| Measurement | Range | Resolution | Accuracy |
|---|---|---|---|
| m/s | 0.4 - 25.00 m/s | 0.01 m/s | ± (2% + 0.2 m/sec) |
| km/h | 1.4 - 90.0 km/h | 0.1 km/h | ± (2% + 0.2 km/h) |
| mile/h | 0.9 - 55.9 mile/h | 0.1 mile/h | ± (2% + 0.2 mile/h) |
| knots | 0.8 - 48.6 knots | 0.1 knots | ± (2% + 0.2 knots) |
| ft/min | 80 - 4921 ft/min | 1 ft/min | ± (2% + 20 ft/min) |
b. Air flow
| Measurement | Range | Resolution | Area |
|---|---|---|---|
| CMM (m3/min.) | 0 - 999,900 m3/min. | 0.001 - 100 m3/min. | 0.001 - 9,999 m3/min. |
| CFM (ft3/min.) | 0 - 999,900 ft3/min. | 0.001 - 100 ft3/min. | 0.001 - 9,999 ft3/min. |
c. Air temperature
| Temperature (°C) | Range | Resolution | Accuracy |
|---|---|---|---|
| °C | 0°C to 50°C | 0.1°C | 0.8°C |
| °F | 32°F to 122°F | 0.1°F | 1.5°F |
* Appearance and specifications listed in this brochure are subject to change without notice.
B210700
| Selling Unit | EACH |
|---|---|
| Model No | AM4206 |
| Brand |
|
| Description | Anemometer - Air Flow & Air Velocity |
| Width | 72mm |
| Height | 32mm |
| Length / Breadth / Depth | 180mm |
| Weight | 96g |
