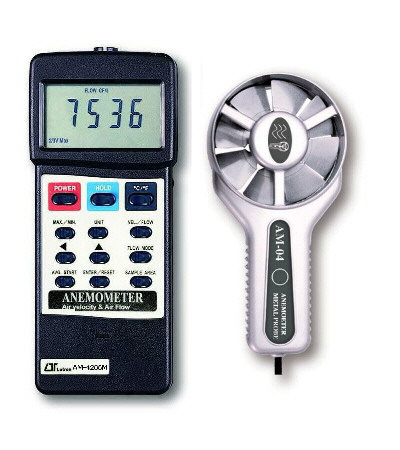

Lutron AM4206M
Anemometer - Air Flow & Air Velocity
FEATURES
- Metal vane probe, heavy duty, wide range measurement.
- Air flow : CMM (m3/min.) and CFM (ft3/min.).
- Air velocity : m/s, ft/min, km/h, knots, mile/h.
- Air temperature : C degree, F degree.
- 3 air flow mode : Instant, 2/3 Vmax, Average.
- Low-friction ball vane wheels is accurate in both high & low velocities.
- Large LCD with dual display.
- Record maximum and minimum reading with recall.
- Data hold.
- Microcomputer circuit provides special function & offer high accuracy.
- Auto shut off saves battery life.
- Thermistor sensor for temp. measurement, fast response time.
- Build-in low battery indicator.
- Operates from 006P DC 9V battery.
- RS 232 computer serial interface.
- Separate probe, easy for operation of the different measurement environment.
- Used the durable, long-lasting components, including a strong, light weight ABS-plastic housing case.
- Wide applications: use this anemometer to check air conditioning & heating systems measure air velocities, wind speeds, temperature, etc.
GENERAL SPECIFICATIONS
| Circuit | Exclusive one-chip of micro-computer LSI circuit. | Power off | Auto shut off saves battery life or manual off by push button. |
|---|---|---|---|
| Display | * 13 mm (0.5") Super large LCD display. * Dual function meter's display. |
Sampling Time | Approx. 0.8 sec. |
| Operating Temperature | Meter: 0°C to 50°C (32°F to 122°F) Probe: 0 to 80°C (32 to 176°F) |
Operating Humidity | Less than 80% RH. |
| Measurement | Air velocity: m/s (meters per second), km/h (kilometers per hour), ft/min (feet per minute), knots (nautical miles per hour), mile/h (miles per hour). Air flow: CMM (m3/min.), CFM (ft3/min.). Air temperature: °C, °F. Data hold. |
Data Output | RS 232 PC serial interface. |
| Power Supply | Alkaline or heavy duty type DC 9V battery, 006P, MN1604 (PP3) or equivalent. | ||
| Power Current | Approx. DC 8.3 mA. | ||
| Weight | 381 g / 0.84 LB. | ||
| Dimension | Main instrument: 180 x 72 x 32 mm (7.1 x 2.8 x 1.3 inch). Sensor head: Round, 72 mm Dia. |
||
| Accessories Included | Instruction manual ... 1 PC. Sensor probe ......... 1 PC. Carrying case ........ 1 PC. |
||
| Optional Accessories | Software (Windows version data record & data acquisition) SW-U101-WIN RS232 cable UPCB-01 |
||
| Sensor Structure | Air velocity & Air flow: Metal structure, Conventional twisted van arm and low friction ball bearing design. Temperature: Thermistor. |
Memory Recall | Record maximum & minimum reading value with recall. |
ELECTRICAL SPECIFICATIONS (23 ± 5°C)
a. Air velocity
| Measurement | Range | Resolution | Accuracy |
|---|---|---|---|
| m/s | 0.5 – 40.0 m/s | 0.1 m/s | ± (2% + 2d) |
| km/h | 1.8 – 144.0 km/h | 0.1 km/h | |
| mile/h | 1.1 – 89.4 mile/h | 0.1 mile/h | |
| knots | 1.0 – 78.1 knots | 0.1 knots | |
| ft/min | 100 – 7880 ft/min | 1 ft/min | ± (2% + 20 ft/min) |
b. Air flow
| Measurement | Range | Resolution | Area |
|---|---|---|---|
| CMM (m3/min.) | 0 – 999,900 m3/min. | 0.001 – 100 m3/min. | 0.001 – 9,999 m3/min. |
| CFM (ft3/min.) | 0 – 999,900 ft3/min. | 0.001 – 100 ft3/min. | 0.001 – 9,999 ft3/min. |
c. Air temperature (probe only)
| Temperature (°C) | Range | Resolution | Accuracy |
|---|---|---|---|
| °C | 0 to 80 °C | 0.1 °C | 0.8 °C (< 60 °C) |
| °F | 32 to 176 °F | 0.1 °F | 1.5 °F (< 140 °F) |
* Appearance and specifications listed in this brochure are subject to change without notice.
| Selling Unit | EACH |
|---|---|
| Model No | AM4206M |
| Brand |
|
| Description | Anemometer - Air Flow & Air Velocity |
| Width | 72mm |
| Height | 32mm |
| Length / Breadth / Depth | 180mm |
| Weight | 104.2g |
| Categories |
Test & Measurement Equipment Digital Test Equipment Anemometers |
| Data Sheet |
|
