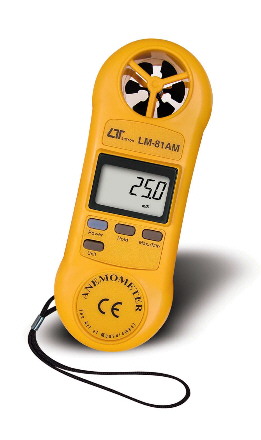

Lutron LM81AM
Anemometer
Features
- Professional Anemometer.
- Tiny bone shape with lightweight and small size case design are suitable for handling with one hand.
- Wristlet design provides extra protection to the instrument especially for user one hand operation.
- Low-friction ball vane wheels design provides high accuracy at high and low air velocity.
- Build in microprocessor circuit assures excellent performance and accuracy.
- Concise and compact buttons arrangement, easy operation.
- Memorize the maximum and minimum value with recall.
- Air velocity measuring units selectable by pressing button on the front panel for five kinds of units.
- Hold function to freeze the current reading value.
General Specifications
| Display | LCD display, 8 mm digit size. |
|---|---|
| Measurement | m/s, ft/min, km/h, MPH, knots |
| Operating Humidity | Max. 80% RH. |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Over Input Display | Indication of "- - - -" |
| Power Supply | 006P DC 9V battery (Heavy duty type) |
| Power Consumption | Approx. DC 6.2 mA |
| Weight | 160 g (battery included) |
| Dimension | HWD 156x60x33 mm (6.14 x 2.36 x 1.29 inch). |
| Standard Accessory | Instruction Manual |
| Optional Accessories | Carrying case (CA-52A). |
Electrical Specification (23 ± 5°C)
| Measurement | Range | Resolution | Accuracy |
|---|---|---|---|
| m/s | 0.4 to 30.0 m/s | 0.1 m/s | ≤ 20 m/s : ± 3% F.S. > 20 m/s : ± 4% F.S. |
| ft/min | 80 to 5910 ft/min | 1 ft/min | |
| km/h | 1.4 to 108.0 km/h | 0.1 km/h | |
| MPH | 0.9 to 67.0 mile/h | 0.1 MPH | |
| knots | 0.8 to 58.3 knots | 0.1 knots |
Remark :
- ft/min : feet per minute
- m/s : meters per second
- km/h : kilometers per hour
- MPH : miles per hour
- knots : nautical miles per hour
- Ft-cd : feet candle
| Selling Unit | EACH |
|---|---|
| Model No | LM81AM |
| Brand |
|
| Description | Anemometer |
| Categories |
Test & Measurement Equipment Digital Test Equipment Anemometers |
| Data Sheet |
|
