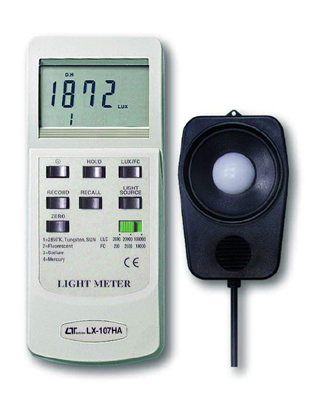

Lutron LX107HA

Light Meter (With Selection Of Lighting Type)

Model: LX‑107HA

Sensor uses exclusive photo diode and color‑correction filter; spectrum meets C.I.E. photopic.
Sensor cosine‑correction factor meets standard.
Wide measurement range for both Lux & Foot‑candle.
Selection of lighting type (Tungsten, Fluorescent, Sodium, Mercury).
Microprocessor circuit assures maximum possible accuracy and provides special functions.
Large LCD display, easy read‑out.
Zero adjusting by push button.
Heavy duty & compact housing case.
Separate light sensor allows measurement at the optimum position.
Records Maximum, Minimum and Average readings with recall.
Data hold function.
Auto power off saves battery life.
Operates from 006P DC 9V battery.

Circuit	Custom one‑chip microprocessor LSI circuit.
Display	13 mm (0.5") large LCD display.
Measurement Ranges	Lux: 1,000 / 10,000 / 100,000 Lux (3 ranges) Foot‑candle (Fc): 100 / 1,000 / 10,000 Fc (3 ranges)
Lighting Type Selection	Tungsten, Fluorescent, Sodium, Mercury
Sensor	Exclusive photo diode & spectrum correction filter. Designed to meet C.I.E. photopic curve requirement.
Memory Recall	Records Maximum, Minimum and Average readings with recall.
Zero Adjust	By push button.
Sampling Time	Approx. 0.4 second.
Power Off	Auto shut off saves battery life, or manual off by push button.
Over Input Indication	Indication on display.
Operating Temperature	0 to 50°C (32 to 122°F).
Operating Humidity	Less than 80% RH.
Power Supply	DC 9V battery (006P, MN1604 / PP3, heavy duty type).
Power Current	Approx. DC 5.3 mA.
Weight	335 g (0.73 lb), including battery.
Dimension	Meter: 185 × 78 × 38 mm (7.3 × 3.1 × 1.5 inch) Sensor probe: 85 × 55 × 12 mm (3.3 × 2.2 × 0.5 inch)
Accessories Included	Instruction manual — 1 PC. Sensor probe — 1 PC.

Range	Display	Resolution	Accuracy
2,000 Lux	0 – 1,999 Lux	1 Lux	± (5% + 2 d)
20,000 Lux	1,800 – 19,999 Lux	10 Lux
100,000 Lux	18,000 – 100,000 Lux	100 Lux

Range	Display	Resolution	Accuracy
200 Fc	0 – 186.0 Fc	0.1 Fc	± (5% + 2 d)
2,000 Fc	167 – 1,860 Fc	1 Fc
10,000 Fc	1,670 – 10,000 Fc	10 Fc

Soft Carrying Case	CA‑03
Hard Carrying Case	CA‑05 Dimensions: 275 × 195 × 64 mm Weight: 455 g

Selling Unit	EACH
Model No	LX107HA
Brand
Description	Light Meter (With Selection Of Lighting Type)
Width	78mm
Height	38mm
Length / Breadth / Depth	185mm
Weight	56g
Categories	Test & Measurement Equipment Digital Test Equipment Light Meters
Data Sheet
