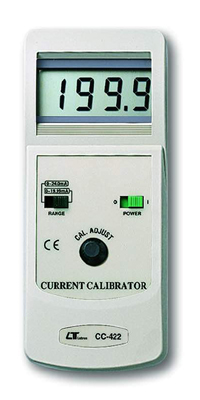

Lutron CC422
Current Calibrator
CURRENT CALIBRATOR
Model: CC‑422
Features
- Provides the quality and accuracy of a handheld calibrator with precision current source.
- Portable instrument for calibrating process devices and measuring process signals.
- Adjustable 0–24 mA current source, 2 ranges.
- Current calibrator drives loads up to 500 ohms.
Specifications
General Specifications
| Display | LCD display, max. display counts 1999, 13 mm (0.5") digit size. |
| Function | mA current source, 2 ranges: 0 – 19.99 mA × 0.01 mA 0 – 24.0 mA × 0.1 mA |
| Sampling Time | Approx. 0.4 second. |
| Operating Temperature | 0°C to 50°C (32°F to 122°F). |
| Operating Humidity | Less than 80% RH. |
| Power Supply | 006P DC 9V, MN1604 / PP3 battery or equivalent (alkaline or heavy duty type). |
| Dimension | 185 × 78 × 38 mm (7.3 × 3.0 × 1.5 inch). |
| Weight | 265 g / 0.58 lb (including battery). |
| Accessories Included | Operation manual — 1 PC. Cable with alligator clips (red & black), LN‑TL421 — 1 PC. |
Electrical Specifications (23 ± 5°C)
| Range | Resolution | Accuracy |
|---|---|---|
| 0 – 19.99 mA | 0.01 mA | ± (0.25% FS + 1 d) |
| 0 – 24 mA | 0.1 mA | ± (0.5% FS + 1 d) |
| Selling Unit | EACH |
|---|---|
| Model No | CC422 |
| Brand |
|
| Description | Current Calibrator |
| Categories |
Test & Measurement Equipment Digital Test Equipment Process Control Meters |
| Data Sheet |
|
