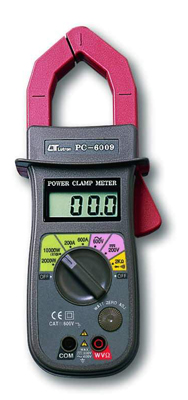

Lutron PC6009
Power Clamp Meter 2kw-10kw
POWER CLAMP METER
2,000 W / 10,000 W Watt measurement
Model: PC‑6009
Features
- Watt (true power), ACV, DCV, ACA, OHMS, Diode.
- Watt measurement via the inductive clamp jaw.
- Wide range for power measurement, max. value up to 10,000 watt.
- Design meet IEC 1010 safety requirement.
- Heavy duty AC clamp meter, 600 A max. range.
- Compact & heavy duty ABS housing plastic case.
- Measure AC current by the inductive conductor.
- LSI circuit provides high reliability and durability.
- LCD display, clear readout.
- Overload protection circuit is provided for full range.
Specifications
General Specifications
| Display | 13 mm (0.5”) LCD, 3 1/2 digits. |
| Measurement | Watt (true power), ACV, DCV, ACA, Ohms, Diode. |
| Polarity | Automatic switching, “-” indicates negative polarity. |
| Current Sensor | Hall effect sensor. |
| Over-input | Display shows “1” or “-1”. |
| Zero Adjust | Built-in mechanical adjustment knob. |
| Sampling Time | Approx. 0.4 second. |
| Battery | Heavy duty type or alkaline battery. DC 9V battery (006P, MN1604 (P3)). |
| Operating Temp. | 0°C to 50°C (32°F to 122°F). |
| Operating Humidity | Less than 80% RH. |
| Power Consumption | Approx. DC 17 mA. |
| Weight | 400 g / 1.05 lb (including battery). |
| Dimension | HWD 230 × 74 × 38 mm. |
| Conductor Size | 35 mm (1.39”) outside. |
| Standard Accessories | Operation manual — 1 PC. Test lead (red & black) — 1 pair. |
| Carrying Case (Optional) | Model: CA‑05A. |
Electrical Specifications (23 ± 5°C)
| Function | Range | Resolution | Accuracy | Overload Protection |
|---|---|---|---|---|
| AC watt (true power) | 1,999 W 10,000 W |
1 W 10 W |
± (2.5% + 8d) ± (3% + 8d) |
Input 600V AC AC 600A |
| DC voltage | 200 V | 0.1 V | ± (0.8% + 1d) | DC 600V |
| AC voltage | 600 V | 1 V | ± (1% + 2d) | AC 600V |
| Ohms | 2 kΩ | 1 Ω | ± (1% + 1d) | AC/DC 250V |
| AC current | 200 A 600 A |
0.1 A 1 A |
± (2% + 10d) ± (2% + 5d) |
1000 AC (within 1 min.) |
Additional Functions
| Diode | Show forward conduction, good/defect test. |
| Continuity Beeper | A continuity testing beeper is equipped, so when checking circuits of short or open, there is no necessity to look at the meter. The beeper sounds while continuity is present. |
Remarks
- Input impedance for ACV & DCV range is 10 Megohm.
- Watt measurement input signal is allowed:
- DC: DC only.
- AC current: AC 5 & 10.
- AC voltage: 250V (AC).
- 2 A & 30 A (AC) > 250V.
- 3 AC voltage is over 600V.
- 4 Frequency is 45 Hz to 65 Hz.
- Watt accuracy are specified under the following conditions:
- AC input current is 30 A ± 30 A.
- AC input voltage is within 110V ± 15%, 220V ± 15%.
- Power factor is 0.8 ± 0.1.
- Frequency is 50 Hz or 60 Hz.
- AC, ACA, ACV frequencies respond from 40 to 400 Hz.
| Selling Unit | EACH |
|---|---|
| Model No | PC6009 |
| Brand |
|
| Description | Power Clamp Meter 2kw-10kw |
| Width | 74mm |
| Height | 38mm |
| Length / Breadth / Depth | 230mm |
| Weight | 80g |
| Categories |
Test & Measurement Equipment Digital Test Equipment Clamp Meters |
