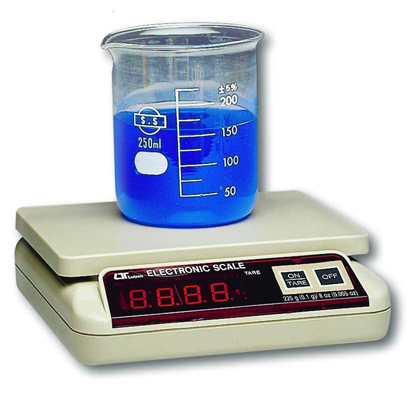

Lutron GM225G
Electronic Scale - 225g X 0.1g
DIGITAL SCALE (225 g × 0.1 g)
Model: GM‑225G
Features
- Microcomputer circuit with high accuracy & better performance.
- High resolution & wide measuring capacity.
- Heavy duty ABS housing plastic case.
- 13 mm (0.5") digit size red LED display, easy read‑out.
- Built‑in unit adjustment, selectable by internal slide switch.
Specifications
| Features | Highly accurate, compact size, easy to carry & transportation. Suitable for office, laboratory, home & other general applications. |
| Display | Red LED, 4 digits, 13 mm (0.56") digit size. |
| Measuring Capacity | 225 g / 8 oz |
| Resolution | 0.1 g / 0.005 oz |
| Min. Display Weight | 0.3 g / 0.01 oz |
| Unit Select | g or oz (internal select). |
| Accuracy (23 ± 5°C) | ± (0.05% + 2 d) * After calibration. |
| Sampling Time | Approx. 0.8 second. |
| Overload Capacity | Max. 500 g. |
| Tare Control | Full capacity. |
| Transducer | Load cell. |
| Circuit | Exclusive microcomputer LSI circuit. |
| Operating Temperature | 0°C to 50°C (32°F to 122°F). |
| Operating Humidity | Less than 80% RH. |
| Size – Cabinet | 15 × 14.5 × 4.8 cm (5.9 × 5.7 × 1.9 inch). |
| Size – Platform | 15 × 10.5 cm (5.9 × 4.2 inch). |
| Weight (without battery) | 0.45 kg (1 lb). |
| Power Supply | 6 × 1.5V AA (UM‑3) batteries or DC 9V adapter (optional). |
| Power Consumption | Approx. DC 80 mA. |
| Accessories Included | Operation manual — 1 PC. |
| Optional Adapter | AC to DC adapter (500 mA). |
| Selling Unit | EACH |
|---|---|
| Model No | GM225G |
| Brand |
|
| Description | Electronic Scale - 225g X 0.1g |
| Width | 14.5mm |
| Height | 4.8mm |
| Length / Breadth / Depth | 15mm |
| Weight | 67g |
| Categories |
Test & Measurement Equipment Digital Test Equipment Electronic Weight Scales |
| Data Sheet |
|
