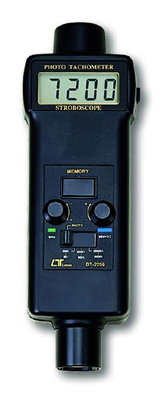

Lutron DT2259
Tacho/Strobe Battery Operated
TACHOMETER / STROBOSCOPE
2 in 1, Digital Photo Tachometer with Digital Stroboscope
Model: DT‑2259
Features
- Intelligent microprocessor circuit design, high accuracy, wide range, digital readout.
- One instrument combines the functions of Digital Photo Tachometer & Digital Stroboscope.
- Digital Stroboscope:
- Wide setting range from 100 to 10,000 FPM, digital display with high accuracy.
- Suitable for measuring length, angle, movement amplitude and for visual inspection of rotating objects such as fans, generators, motors and more.
- Digital Photo Tachometer:
- Wide measuring range from 0.5 to 100,000 RPM.
- High resolution; measurement stored as last, max. and min. values.
- Visible LCD display gives RPM reading exactly without guessing or error.
- Battery operated, compact and lightweight.
- Durable long‑lasting components with strong, lightweight ABS plastic housing.
- Cabinet ergonomically shaped for comfortable hand operation.
General Specifications
| Display | 5 digits, 10 mm (0.4") LCD display. |
| Accuracy | ± (0.1% + 2 digits). |
| Sampling Time | 1 second (≥ 250 RPM). |
| Time Base | Quartz crystal. |
| Circuit | Exclusive one‑chip microprocessor LSI circuit. |
| Operating Temperature | 0 to 50°C (32 to 122°F). |
| Operating Humidity | Less than 80% RH. |
| Size | 215 × 65 × 38 mm (8.5 × 2.6 × 1.5 inch). |
| Weight | 300 g (0.66 lb), including battery. |
| Battery | 4 × 1.5V AA (UM‑3) batteries. |
| Accessories Included | Carrying case — 1 PC. Operation manual — 1 PC. |
Electrical Specifications
Digital Photo Tachometer
| Measurement Range | Resolution |
|---|---|
| 0.5 – 99,999 RPM | 0.1 RPM (< 1,000 RPM) 1 RPM (≥ 1,000 RPM) |
| Photo Tach Detecting Distance | 50 to 150 mm (typical). |
Digital Stroboscope
| Function | Specification |
|---|---|
| Flash Rate | 100 to 10,000 FPM / RPM. |
| Resolution | 0.1 FPM / RPM (< 1,000 FPM/RPM) 1 FPM / RPM (≥ 1,000 FPM/RPM) |
| Flash Tube | High efficiency orange LED lamp. |
| Flash Duration | Approx. 50 to 1,000 microseconds. |
| Flash Color | Orange. |
| Flash Life | Approx. 10⁶ times. |
| Adjustment | Coarse adjust knob and fine adjust knob. |
| Calibration | Crystal time base and microprocessor circuit; no external calibration required. |
Operational Notes (Stroboscope)
| Preparation | Determine the range switch to “1000 RPM” or “10,000 RPM”; position the strobe light toward the target. |
| Checking Speed | Adjust the flashing frequency until the target appears stationary; be aware of harmonic multiples. |
| Checking Motion | For motion analysis, slightly reduce or increase the flash rate to create a slow‑motion visual effect. |
