Saft LS14500

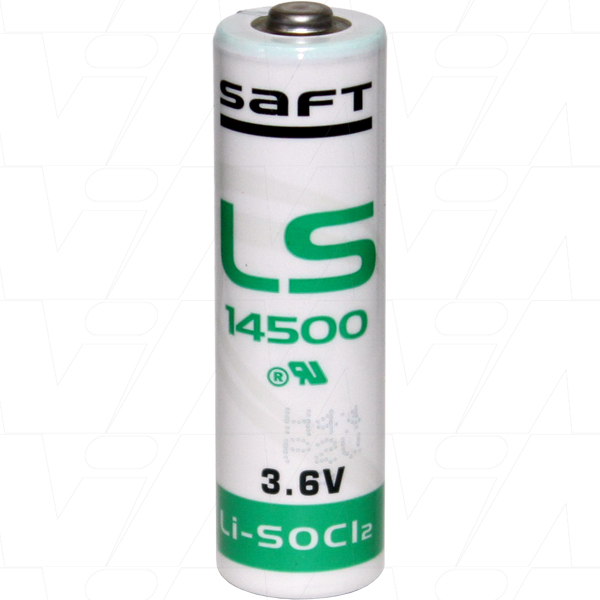

LS14500 AA size Saft Lithium 3.6V Thionyl Chloride Battery - Bobbin Type
AA Size Lithium Thionyl Chloride cell
Saft’s LS 14500 cell is ideally suited for long-term applications (typically from 5 to 20+ years), featuring low base currents and periodic pulses.
Benefits:
- Bobbin Construction
- High capacity and high energy (1139 Wh/l and 589 Wh/kg)
- High voltage response, stable during most of the lifetime of the application • Wide operating temperature range (-60°C / +85°C)
- Low self-discharge, compatible with a long operating life (less than 1% per year of storage, at +20°C, after 1 year)
- Superior resistance to corrosion
- Low magnetic signature
Designed to meet all major quality, safety and environment standards
- Safety: UL 1642, IEC 60086-4
- IEC 60079-11 part 10.5, (T4 temperature rating at +60°C)
- Transport: UN 3090 and UN 3091
- Quality: ISO 9001, Saft Excellence System, continuous evaluation program
Alternate Products:
High Temp Model - LS14500HT
Supplied with Axial Leads/Pins - LS14500-CNA
Supplied with 20F Super Capacitor - LSP14500-20F
Supplied with 70F Super Capacitor - LSP14500-70F
| Selling Unit | EACH |
|---|---|
| Model No | LS14500 |
| Brand |
|
| Description | LS14500 AA size Saft Lithium 3.6V Thionyl Chloride Battery - Bobbin Type |
| Application | Memory Back Up (MBU) |
| Chemistry | Lithium Thionyl Chloride |
| Voltage | 3.6V |
| Watt Hour | 9.36Wh |
| Nominal Capacity | 2.6Ah |
| Maximum Continuous Discharge Current | 50mA |
| Size | AA |
| Width | 14.55mm |
| Height | 50.3mm |
| Weight | 16.7g |
| Categories |
Portable Power Product Batteries Primary (Non-Rechargeable) Lithium Batteries Lithium Thionyl Chloride Batteries Lithium Thionyl Chloride Cylindrical Bobbin-MBU type Memory Back Up (MBU) Batteries 3.6V Lithium Thionyl Chloride - Bobbin Type ATEX & Intrinsic Safety |

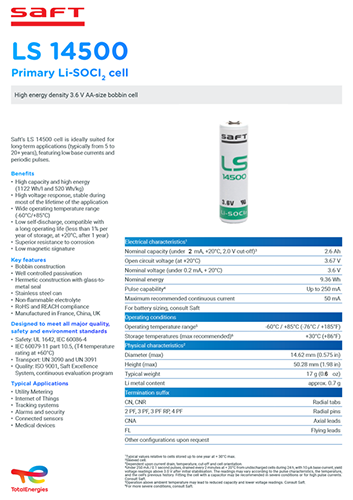

| Data Sheet |
|
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
Saft’s broad offer includes the world’s only lithium cells independently certified and regularly audited, ensuring full and continued compliance with IEC / EN 60079-0 (Explosive atmospheres – Part 0: General requirements) and 60079-11 (Explosive atmospheres – Part 11: Equipment protection by intrinsic safety “i”) standards.
Speak to the Battery Engineers at Master Instruments to find out more about this standard.
SHIPPING RESTRICTIONS APPLY
Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.
NON DG UN3090 LITHIUM METAL BATTERIES - Contains cells/batteries exempted from ADG 7.7 & IMDG Code 2020 using Special Provision 188.
Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.
