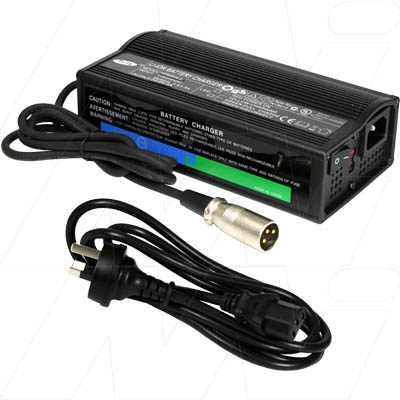

Master HP8204L2(7S5A)
Lithium Ion charger for 7 cells
The HP8204L2(7S) is a professional standard charger for 25.2V/25.9V lithium ion/lithium ion polymer batteries.
- Nominal battery pack voltage is 25.9V (based on 3.7V cells) charging up to 29.4V (charge termination 4.2V per cell).
- Output charge current is 5 amps.
- Supplied complete with Cannon XLR 3-pin Plug.
- This charger is also available in other output ranges -
- 3S @ 0.5~1.5A
- 4S @ 0.5~1.5A
- 5S @ 1~2A
- 7S @ 1~2A
- 8S @ 1~3A
- 10S @ 2A, 3A, 4A.
For full specifications please download the data sheet available below.
Mating output cable BFL10F for connection to battery also available.
| Selling Unit | EACH |
|---|---|
| Model No | HP8204L2(7S5A) |
| Brand |
|
| Description | Lithium Ion charger for 7 cells |
| Size | 7S |
| Width | 93mm |
| Height | 53mm |
| Length / Breadth / Depth | 180mm |
| Weight | 830g |
| Categories |
Portable Power Product Battery Chargers / Analysers / Testers Lithium Ion/Polymer Chargers NEW LiIon Chargers |
| Data Sheet |
|
