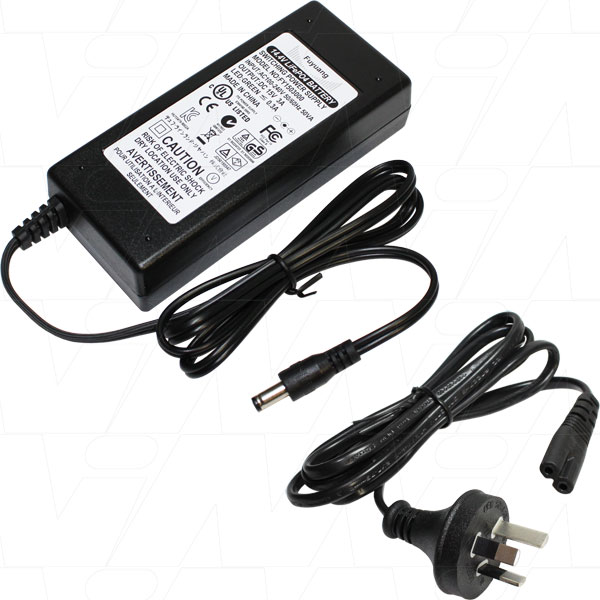

Fuyuang FY1503000

Fuyuang FY1503000

100-240VAC input LiFePO4 4 cell 14.4V charger output 3A + 2.1mm DC plug

100-240VAC input lithium iron phosphate (LiFePO4) battery charger for 4 cell 12.8V packs.

Specifications:

  • Input Voltage: 100-240VAC 50/60Hz
  • Output Voltage: 14.4VDC
  • Output Current: 3A
  • Output Connection: 2.1mm I/D, 5.5mm O/D, centre positive, 1.0m 18AWG lead.
  • LED Indication:
    • Green – Power on and No Load
    • Red – Charging Battery
    • Green – Charge complete

NOTE: For indoor use only.

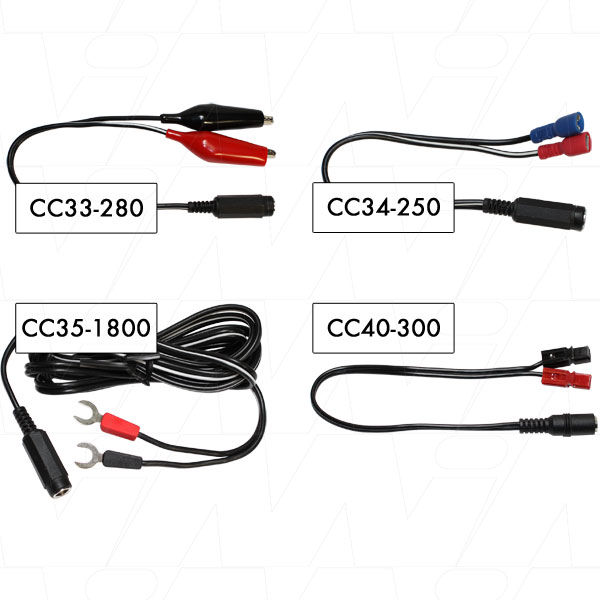

Extra Connector Adaptor:  For optional connector adaptors, see:

  • CC33-280 (female 2.1mm DC plug to alligator clips)
  • CC34-250 (female 2.1mm DC plug to female 6.35mm dual spade terminals)
  • CC35-250 (female 2.1mm DC plug to low volt spanner connectors)
  • CC40-300 (female 2.1mm DC plug to Anderson Powerpole connectors)



Connector adaptors sold separately.


SHARE:
Selling Unit EACH
Model No FY1503000
Brand Fuyuang brand logo
Description 100-240VAC input LiFePO4 4 cell 14.4V charger output 3A + 2.1mm DC plug
Chemistry Lithium Iron Phosphate (LiFePO4)
Voltage 14.4V
Size 4S
Width 59mm
Height 31mm
Length / Breadth / Depth 132mm
Categories Portable Power Product
Battery Chargers / Analysers / Testers
Lithium Iron Phosphate Chargers
LiFePO4 Only Chargers
RC Hobby Chargers
NEW LiIon Chargers
Data Sheet Datasheet PDF Thumbnail icon
