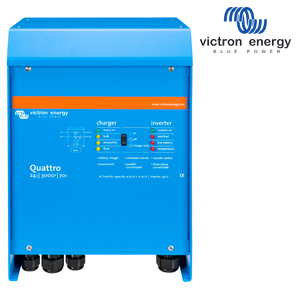

Quattro Inverter Chargers

Similar to the MultiPlus, the Quattro is also a combined inverter and charger. Additionally it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple system integration features such as three or split phase operation and parallel operation.

Features include:
  • Two AC Inputs & two AC Outputs that can be connected to two independent AC sources, for example shore-side power and a generator, or two generators.
  • The PowerAssist feature which prevents overload of a limited AC source, such as a generator or shore power connection.
  • Virtually unlimited power thanks to parallel operation allowing up to 6 Quattros to operate in parallel to achieve higher power output.
  • Uninterrupted AC power (UPS function) which in the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads.
  • Remote Monitoring and Control allowing you to control your MultiPlus and system or systems' locally (LAN) or remotely                                                                   via the internet from anywhere in the world, using the free VRM app and free VRM portal website .





Image Model No
Sort
Description Brand
Sort
Volts
(V)
Sort
Diameter/
Width
(mm)
Sort
Height
(mm)
Sort
Length/
Breadth/
Depth/
(mm)
Sort
Weight
(g)
Sort
Victron Energy VEICQ-12/3000/120 VEICQ-12/3000/120 Quattro Inverter & SLA/LiFePO4 Charger 12V 3000VA 120A QUA123020010 Victron Energy 12 258 362 218 19000
Victron Energy VEICQ-12/5000/220 VEICQ-12/5000/220 Quattro Inverter & SLA/LiFePO4 Charger 12V 5000VA 220A QUA125020000 Victron Energy 12 328 444 240 30000
Victron Energy VEICQ-24/3000/70 VEICQ-24/3000/70 Quattro Inverter & SLA/LiFePO4 Charger 24V 3000VA 70A QUA243020010 Victron Energy 258 362 218 19000
Victron Energy VEICQ-24/5000/120 VEICQ-24/5000/120 Quattro Inverter & SLA/LiFePO4 Charger 24V 5000VA 120A QUA245021010 Victron Energy 24 328 444 240 30000
Victron Energy VEICQ-24/8000/200 VEICQ-24/8000/200 Quattro Inverter & SLA/LiFePO4 Charger 24V 8000VA 200A QUA248020010 Victron Energy 24 350 470 280 45000
Victron Energy VEICQ-48/10000/140 VEICQ-48/10000/140 Quattro Inverter & SLA/LiFePO4 Charger 48V 10000VA 140A - 100A QUA481030010 Victron Energy 48 350 470 280 45000
Victron Energy VEICQ-48/15000/200 VEICQ-48/15000/200 Quattro Inverter & SLA/LiFePO4 Charger 48V 15000VA 200A - 100A QUA483150000 Victron Energy 48 488 572 344 72000
Victron Energy VEICQ-48/5000/70 VEICQ-48/5000/70 Quattro Inverter & SLA/LiFePO4 Charger 48V 5000VA 70A - 100A QUA485021010 Victron Energy 450 520 340 33200
Victron Energy VEICQ-48/8000/110 VEICQ-48/8000/110 Quattro Inverter & SLA/LiFePO4 Charger 48V 8000VA 110A QUA488024000 Victron Energy 48 350 470 280 41000
Victron Energy VEICQII-48/5000/70-50/50 VEICQII-48/5000/70-50/50 Quattro-II Inverter & SLA/LiFePO4 Charger 48V 5000VA 70A - 50A QUA482504010 Victron Energy 328 560 148 30000
