Tekcell SB-AA02M

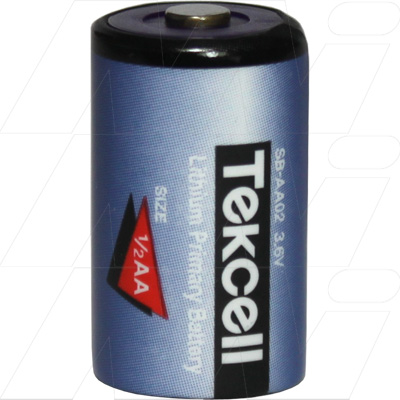

SB-AA02M 1/2AA size Tekcell Lithium 3.6V Thionyl Chloride Battery - Bobbin Type
Memory backup battery also suitable for PLC/CNC devices. For the Pulse Type battery, see SB-AA02P.
Allen Bradley 1771-DB Series B, 1772-LW Series B, 1772-LW Series C, 1772-LW Series D, 1772-LWP Series B, 1772-LWP Series C, 1772-LWP Series D, 1772-LX Series B, 1772-LX Series C, 1772-LX Series D, 1772-LXP Series B, 1772-LXP Series C, 1772-LXP Series D, B-2/16, B-2/17, C-2/16, C-2/17, D-2/16, D-2/17, DL20 DataLiner Series, MINI-PLC-2/02, MINI-PLC-2/05, MINI-PLC-2/16, MINI-PLC-2/17.
Siemens 100CPU, 100U, 102CPU, 95CPU, 95U, S5 series, SS-100U.
Modicon 984 series.
Replaces Allen Bradley 1770-XZ. Eternacell T04/41. Modicon 60-0576-000, 60-0576-100. Siemens 6ES5-980-0MA11.
| Selling Unit | EACH |
|---|---|
| Model No | SB-AA02M |
| Brand |
|
| Description | SB-AA02M 1/2AA size Tekcell Lithium 3.6V Thionyl Chloride Battery - Bobbin Type |
| Application | Memory Back Up (MBU) |
| Chemistry | Lithium Thionyl Chloride |
| Voltage | 3.6V |
| Watt Hour | 4.32Wh |
| Nominal Capacity | 1.2Ah |
| Maximum Continuous Discharge Current | 15mA |
| Size | 1/2AA |
| Width | 14.3mm |
| Height | 24.6mm |
| Weight | 9.2g |
| Inner Quantity | 100 |
| Outer Quantity | 1000 (10 Inner Cartons) |
| Categories |
Portable Power Product Batteries Primary (Non-Rechargeable) Lithium Batteries Lithium Thionyl Chloride Batteries Lithium Thionyl Chloride Cylindrical Bobbin-MBU type Memory Back Up (MBU) Batteries PLC-Robotics-CNC Machine Batteries |
| Data Sheet |
|
