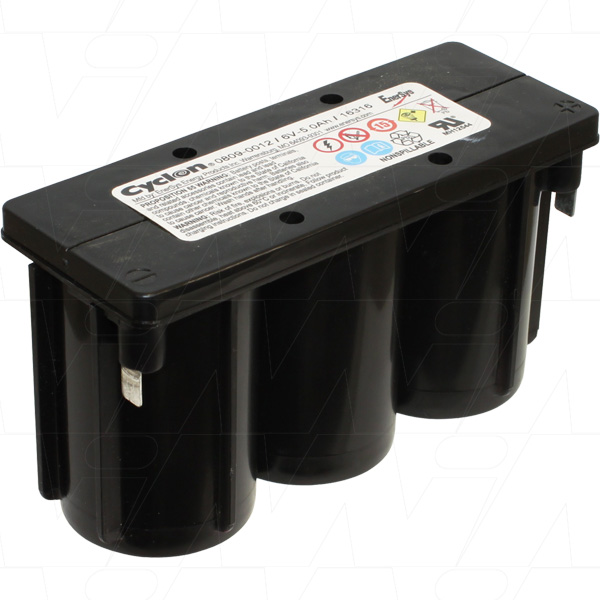

EnerSys 0809-0012

EnerSys 0809-0012

Sealed Lead Tin BatteryCyclon Monobloc

EnerSys thin plate rechargeable Cyclon cells can solve many of the problems associated with "conventional" lead-alloy batteries. The sealed construction uses patented, starved-electrolyte system, providing numerous advantages including long service life, rugged construction, extreme temperature performance, fast recharge, high discharge rates andlow internal resistance. In addition to the standard cylindrical configurations, Cyclon cells offer a high degree of flexibility to meet unusual requirements and can be custom configured in an infinite number of designs to meet your precise voltage and amperage.

Features and Benefits:

  • Capacity:2.5Ah -25Ah
  • Design Life:15 years @20 °C (68 °F)
  • UL recognized
  • Approved for shipping as non-hazardous, non-spillable
  • Operates in any position

Applications:

  • Telecommunications UPS
  • Emergency lighting Aerospace
  • Medical equipment Defense
  • Global positioning systems Solar
  • Electronics

Suitable For:

Bard Med Systems Bladderscan 500
Bard Med Systems Bladderscan BU12000
Bard Med Systems Bladderscan BVI2500
Bard Med Systems Bladderscan BZI2500
Diagnostic Ultrasound Corp Bladderscan 500
Diagnostic Ultrasound Corp Bladderscan BU12000
Diagnostic Ultrasound Corp Bladderscan BVI2500
Diagnostic Ultrasound Corp Bladderscan BZI2500
SHARE:
Selling Unit EACH
Model No 0809-0012
Brand EnerSys brand logo
Description Sealed Lead Tin BatteryCyclon Monobloc
Application Cyclic & Standby, Medical Equipment
Chemistry Sealed Lead
Voltage 6V
Watt Hour 30Wh
Nominal Capacity 5Ah
Size Monobloc
Width 53.8mm
Height 76.7mm
Length / Breadth / Depth 139.2mm
Weight 980g
Outer Quantity 16
Categories Portable Power Product
Batteries Secondary (Rechargeable)
Sealed Lead Acid (SLA-VRLA) Batteries
Sealed Lead Tin Cyclon Batteries
Data Sheet Datasheet PDF Thumbnail icon Datasheet PDF Thumbnail icon
