Product Details

Model No
SHARE US:
Selling Unit EACH
Categories Portable Power Product
Battery Chargers / Analysers / Testers
Battery Analysers and Testers

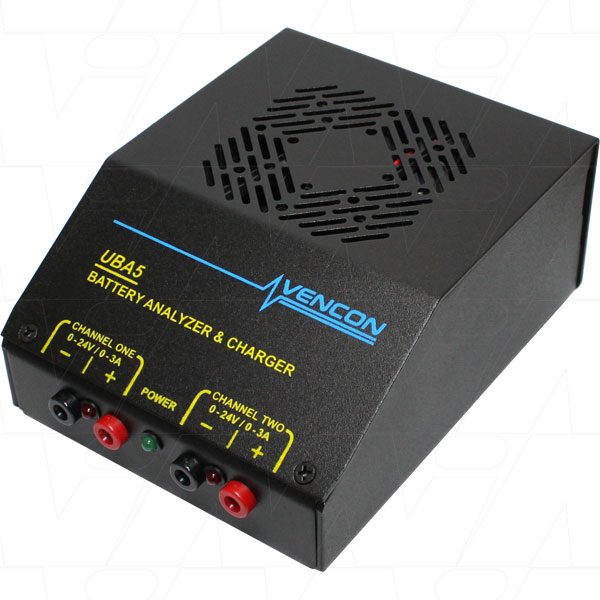

UBA5 Battery Analyser-Charger-Conditioner
Description Battery Analyser for Up to 18V Battery Packs c/w USB Adaptor & Temperature Probes
Brand
Width 115mm
Height 165mm
Length/Breadth/Depth 64mm
Weight 850g
Comments

The UBA5 is capable of analysing & charging battery packs of up to 18 volts.

The unit is a two channel unit PC controlled for charging/analysing all chemistries. Charging style can be Peak, inflection, timed, voltage or pulse charge. For complete information on this unit please click here to go to the Vencon UBA5 product page.

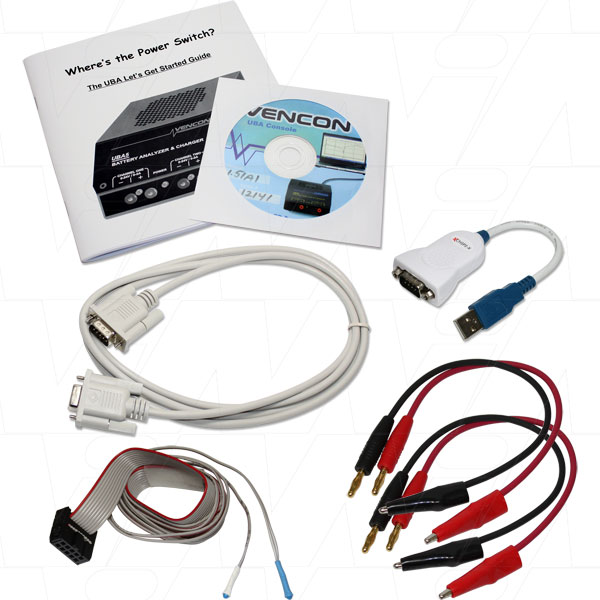

This kit comes with:

  • UBA5 Analyser
  • Software CD
  • User Manual
  • Connection lead for PC link
  • RS232 to USB converter
  • 2 x Red and Black battery connection leads
  • Magnetic Temperature Probe

This kit is NOT supplied with a Power Supply. The UBA5 requires a SAA approved (for Australia) 27V power supply. This unit does not include the supply. If you require a UBA5 with power supply please go to the UBA5-PS page.

Note : Batteries should always be tested in "Controlled" environments and for safety purposes you should never leave batteries unattended whilst being analysed.
