Product Details

Model No
SHARE US:
Selling Unit EACH
Categories Portable Power Product
Battery Chargers / Analysers / Testers
Battery Analysers and Testers
Cadex Battery Maintenance, Analyser & Tester Range
Cadex Analyser & Maintenance Systems
Description Four Bay High Voltage Battery Analyser. Services 4 batteries simultaneously; programmable up to 36V.
Brand
Width 280mm
Height 107mm
Length/Breadth/Depth 391mm
Weight 5500g
Comments

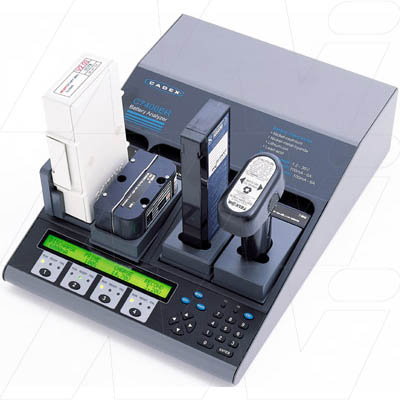

The extended range Cadex C7400ER-C is the most powerful of the C7000 Series battery analyzers. It offers 170 watts of charge power and accommodates batteries up to 36V. The maximum charge and discharge current is 100mA to 6A* in 25mA increments.

The Cadex C7000 Series battery analyzer tests, conditions and restores batteries that otherwise would be discarded. Prolonged battery life reduces costs and increases reliability. Most importantly, battery users are assured that their packs will perform when needed. The Cadex C7000 Series battery analyzers serve small and large battery users. Battery Adapters are available in universal styles (refer to the full Cadex range page to access the various universal adaptor types) as well as adaptors for specific battery  models. Optional BatteryShop™ software allows PC interface.

To view the C7x00 series brochure please click the data sheet link below.
Specific information is also available for each of the following topics:-

For complete information including an on line demonstation of the C7x00 analyser range we recommend visiting the Cadex web site Analyser page.

2014 CADEX BROCHURE - ADVANCING BATTERY MAINTENANCE

Data Sheet
