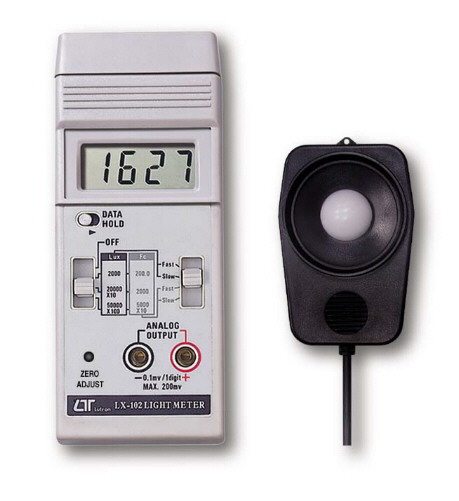

Lutron LX102

Light Meter

Model: LX‑102

Sensor uses exclusive photo diode and color‑correction filter; spectrum meets C.I.E. photopic standard.
Sensor cosine‑correction factor meets standard.
Separate light sensor allows measurement at optimum position.
Precise and easy readout with wide measurement range.
High accuracy in measurement.
Built‑in low battery indicator.
LSI circuit provides high reliability and durability.
LCD display with low power consumption.
Compact, lightweight design with excellent operation.
LCD display can be clearly read even under high ambient light.

Display	13 mm (0.5") LCD.
Measurement	Lux, Foot‑candle, Data hold, Analog output.
Measurement Ranges	Lux: 0 to 50,000 Lux (3 ranges) Foot‑candle: 0 to 5,000 Fc (3 ranges)
Zero Adjustment	Internal adjustment.
Over‑Input	Indication of “1”.
Sampling Time	Approx. 0.4 second.
Sensor Structure	Exclusive photo diode and color‑correction filter.
Power Supply	DC 9V battery (006P, MN1604 / PP3 or equivalent).
Power Consumption	Approx. DC 2 mA.
Analog Output	Analog output.
Operating Temperature	0 to 50°C (32 to 122°F).
Operating Humidity	Less than 80% RH.
Dimension	Main instrument: 163 × 70 × 30 mm (6.4 × 2.8 × 1.2 inch) Sensor probe: 82 × 55 × 7 mm (3.2 × 2.2 × 0.3 inch)
Weight	220 g (0.52 lb) with batteries.
Accessories Included	Instruction manual — 1 PC.

Measurement	Range	Resolution	Accuracy
Lux	2,000 Lux	1 Lux	± (5% + 2 d)
	20,000 Lux	10 Lux	± (5% + 2 d)
	50,000 Lux	100 Lux	± (5% + 2 d)
Foot‑candle (Fc)	200 Fc	0.1 Fc	± (5% + 2 d)
	2,000 Fc	1 Fc	± (5% + 2 d)
	5,000 Fc	10 Fc	± (5% + 2 d)

0.1 mV per digit, max. 200.0 mV.

Selling Unit	EACH
Model No	LX102
Brand
Description	Light Meter
Width	55mm
Height	7mm
Length / Breadth / Depth	82mm
Weight	41g
Categories	Test & Measurement Equipment Digital Test Equipment Light Meters
