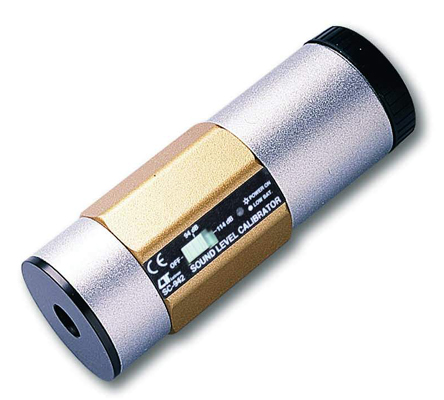

Lutron SC942
Sound Level Calibrator

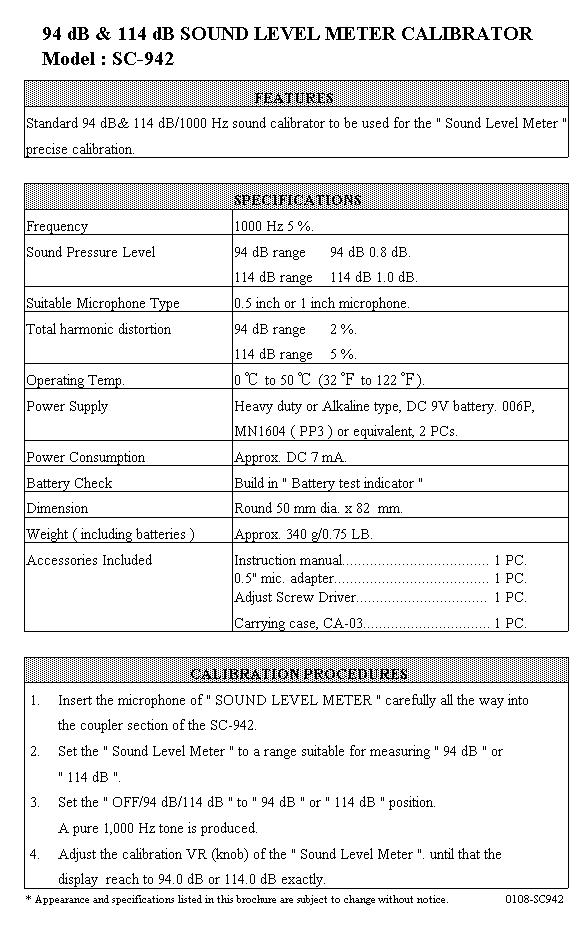

94 dB & 114 dB SOUND LEVEL METER CALIBRATOR
Model: SC‑942
Features
- Standard 94 dB & 114 dB / 1000 Hz sound calibrator.
- Designed for precise calibration of sound level meters.
Specifications
| Frequency | 1000 Hz ± 5% |
| Sound Pressure Level | 94 dB range: 94 dB ± 0.8 dB |
| 114 dB range: 114 dB ± 1.0 dB | |
| Suitable Microphone Type | 0.5 inch or 1 inch microphone |
| Total Harmonic Distortion | 94 dB range: 2% |
| 114 dB range: 5% | |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Power Supply | Heavy duty or alkaline type, DC 9V battery, 006P, MN1604 (PP3) or equivalent, 2 PCS |
| Power Consumption | Approx. DC 7 mA |
| Battery Check | Built‑in battery test indicator |
| Dimension | Round 50 mm Dia. × 82 mm |
| Weight (Including Batteries) | Approx. 340 g / 0.75 lb |
| Accessories Included | Instruction manual — 1 PC. 0.5" mic. adapter — 1 PC. Adjust screw driver — 1 PC. Carrying case, CA‑03 — 1 PC. |
Calibration Procedures
| Step 1 | Insert the microphone of the sound level meter carefully all the way into the coupler section of the SC‑942. |
| Step 2 | Set the sound level meter to a range suitable for measuring “94 dB” or “114 dB”. |
| Step 3 | Set the “OFF/94 dB/114 dB” switch to the “94 dB” or “114 dB” position. A pure 1000 Hz tone will be produced. |
| Step 4 | Adjust the calibration VR (knob) of the sound level meter until the display reaches exactly 94.0 dB or 114.0 dB. |
| Selling Unit | EACH |
|---|---|
| Model No | SC942 |
| Brand |
|
| Description | Sound Level Calibrator |
| Categories |
Test & Measurement Equipment Digital Test Equipment Sound Level Meters |
| Data Sheet |
|
