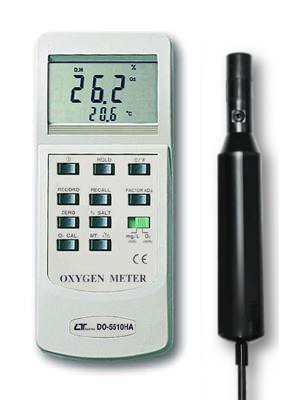

Lutron DO5510HA
Dissolved Oxygen Meter
DIGITAL OXYGEN METER
Model : DO‑5510HA
1. GENERAL DESCRIPTIONS
This Digital Oxygen Meter is supplied with a polarographic type probe with an incorporated temp. sensor which serves for precision Dissolved Oxygen (DO), Oxygen in Air (O2), Temp. measurement.
Applications for Aquarium, Medical research, Agriculture, Fish hatcheries, Laboratory, Water conditioning, Mining industrial, Schools & Colleges, Quality control...
2. FEATURES
- The polarographic type oxygen probe with an incorporated temp. sensor, high precision measurement for Dissolved Oxygen (DO), Oxygen in Air (O2) & Temperature measurement.
- Automatic temp. compensation from 0 to 50 ℃ sensor.
- Build in % SALT & Mountain Height compensation, adjust the factor by push button on the front panel.
- Microprocessor circuit assures high accuracy and provides special functions and features.
- Super large LCD display with contrast adjustment for best viewing angle.
- Multi‑display, show oxygen & temp. at the same time.
- Records Maximum, Minimum and Average readings with RECALL.
- Data hold.
- Auto shut off saves battery life.
- Operates from 006P DC 9V battery.
- Build in temperature, ℃/℉ measurement.
- Used the durable, long‑lasting components, including a heavy duty & compact ABS‑plastic housing case.
3. SPECIFICATIONS
| Circuit | Custom one‑chip of microprocessor LSI circuit. |
| Display | Dual function meter’s display, 13 mm (0.5") Super large LCD display. |
| Measurement & Range | Dissolved Oxygen : 0 to 20.0 mg/L. Oxygen in Air : 0 to 100 %. |
| Resolution | Dissolved Oxygen : 0.1 mg/L. Oxygen in Air : 0.1 %. |
| Accuracy (23 ± 5 ℃) | Dissolved Oxygen : ± 0.4 mg/L. Oxygen in Air : ± 0.7 % O2. Temperature : ± 0.8 ℃ / ± 1.5 ℉. |
| Sensor Structure | The polarographic type oxygen probe with an incorporated temperature sensor. |
| Temp. Compensation & Adj. | Temperature : 0 to 50 ℃, Automatic. Salt : 0 to 39 % Sal. Height (M.T.) : 0 to 3900 meter. |
| Memory Recall | Records Maximum, Minimum and Average readings with RECALL. |
| Power off | Auto shut off saves battery life or manual off by push button. |
| Over input indication | Indication of “‑‑‑‑”. |
| Operating Temperature | 0 ℃ to 50 ℃ (32 ℉ to 122 ℉). |
| Operating Humidity | Max. 80% RH. |
| Sampling Time | Approx. 0.4 sec. |
| Power Supply | 006P DC 9V battery (heavy duty type). |
| Power Current | Approx. DC 5.6 mA. |
| Weight | 355 g / 0.78 LB (included batteries & probe). |
| Size | Main instrument : 180 x 72 x 32 mm (7.1 x 2.8 x 1.3 inch). Oxygen probe : 125 mm x 20 mm dia. (4.9" x 0.8" dia.) |
| Accessories Included | Oxygen probe ............................ 1 PC. Carrying case ........................... 1 PC. Operation manual ....................... 1 PC. Spare Diaphragm (5 PCs per pack) ........ 1 set. Probe‑filling Electrolyte ............... 1 set. |
| Optional Accessories | Oxygen probe ............................ OXPB‑11 Spare Diaphragm (5 PCs per pack) ........ OXDP‑02 Probe‑filling Electrolyte ............... OXEL‑03 |
* Appearance and specifications listed in this brochure are subject to change without notice.
| Selling Unit | EACH |
|---|---|
| Model No | DO5510HA |
| Brand |
|
| Description | Dissolved Oxygen Meter |
| Width | 72mm |
| Height | 32mm |
| Length / Breadth / Depth | 180mm |
| Weight | 114g |
