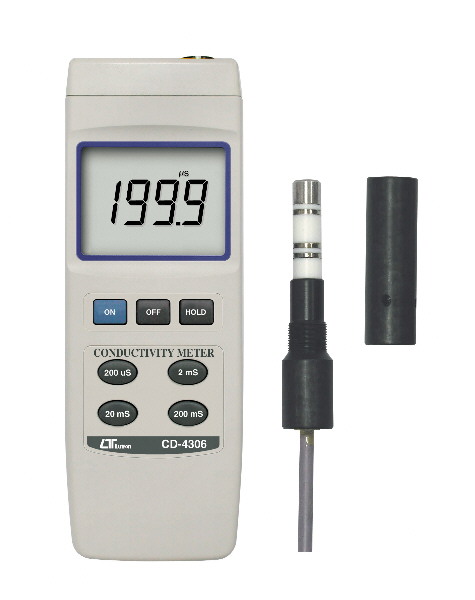

Lutron CD4306
Conductivity Meter
CONDUCTIVITY METER
Model : CD‑4306
4 ranges
FEATURES
- 4 rings conductivity probe, high performance, wide range, professional.
- 4 ranges : 200 uS, 2 mS, 20 mS, 200 mS.
- Separate electrode, easy operation.
- The portable conductivity meter provides fast, accurate readings, with digital readability and the convenience of a remote probe separately.
- LCD display for low power consumption & clear read‑out even in bright ambient light condition.
- Used the durable, long‑lasting components, including a strong, light weight ABS‑plastic housing case.
- Built‑in low battery indicator.
- Wide applications : water conditioning, aquariums, beverage, fish hatcheries, food processing, photography, laboratory, paper industry, plating industry, quality control, school & college.
SPECIFICATIONS
| Display | Large LCD display, 21.5 mm digit height. |
| Measurement & Range | 4 ranges : 200 uS, 2 mS, 20 mS, 200 mS. |
| Resolution | 0.1 uS for 200 uS range. 0.001 mS for 2 mS range. 0.01 mS for 20 mS range. 0.1 mS for 200 mS range. * uS = micro Siemens, mS = milli Siemens |
| Accuracy (23 ± 5℃) | ± (1% F.S. + 1 d) |
| Sampling Time | Approx. 0.4 second. |
| Over Range Indicator | Display shows "1". |
| Data Hold | To freeze the measured pH value on the display. |
| Temperature Compensation | Automatic, 0 to 50 ℃ (32 to 122 ℉). Temperature compensation factor on fix on 2% per ℃. |
| Calibration VR | Build in external calibration VR. |
| Operating Temperature | 0 to 50 ℃ (32 to 122 ℉). |
| Operating Humidity | Max. 80% RH. |
| Power Supply | DC 9V battery (heavy duty type), 006P, MN1604 (PP3) or equivalent. |
| Power Current | Approx. DC 5 mA. |
| Weight | 270 g / 0.60 LB (w/battery & electrode). |
| Dimension | Meter : 200 x 68 x 30 mm (7.9 x 2.7 x 1.2 inch). Electrode : Round, 20 mm Dia. x 124 mm length. |
| Accessories Included | Instruction Manual ....................... 1 PC. Conductivity electrode .................. 1 PC. Hard Carrying Case ....................... CA‑05 |
| Optional Accessory | 1.413 mS calibration solution .......... CD‑14 |
* Appearance and specifications listed in this brochure are subject to change without notice.
| Selling Unit | EACH |
|---|---|
| Model No | CD4306 |
| Brand |
|
| Description | Conductivity Meter |
| Width | 68mm |
| Height | 30mm |
| Length / Breadth / Depth | 200mm |
| Weight | 97.1g |
| Categories |
Test & Measurement Equipment Digital Test Equipment Analytical Meters |
| Data Sheet |
|
