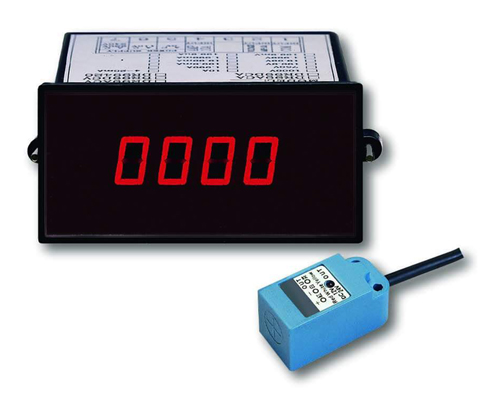

Lutron DT2240D
Tachometer Input 5-100k RPM Power Supply AC240V/50hz
PANEL TACHOMETER
Model: DT‑2240D
Specifications
| Display | 14.3 mm (0.56") high brightness red LED, 4 digits, max. display 9999. |
| Signal Input | One round per input signal to get RPM resolution (recommended to match optional proximity sensor, PX‑01). |
| Range | 5 to 9,999 RPM. |
| Resolution | 0.1 RPM (5 to 999 RPM) 1 RPM (1,000 to 9,999 RPM) 10 RPM (over 10,000 RPM) |
| Accuracy | ± (0.05% + 1 d) |
| Sampling Time | 1 sec. over 60 RPM. |
| Range Select | Automatic. When measuring value over 9,999 RPM, display will show “x 10” LED indicator. |
| Operating Temperature | 0°C to 50°C (32°F to 122°F). |
| Operating Humidity | Less than 80% RH. |
| Power Supply | AC 110V, 220V, 50/60 Hz (or 230V internal adjustment). |
| Power Consumption | Approx. AC 16 mA (AC 110V power). Approx. AC 9 mA (AC 220V / 230V power). |
PROXIMITY SENSOR
Model: PX‑01 (DT‑2240D Optional Sensor)
Specifications
| Application | Optional sensor for DT‑2240D. |
| Power Supply | DC 12V to 24V. |
| Detectable Object | Metal object (ferrous material). |
| Detecting Distance | 4 mm. |
| Response Time | 600 Hz max. |
| Power Consumption | Approx. 10 mA. |
| Cable Length | 1 meter. |
| Selling Unit | EACH |
|---|---|
| Model No | DT2240D |
| Brand |
|
| Description | Tachometer Input 5-100k RPM Power Supply AC240V/50hz |
| Weight | 41g |
| Categories |
Test & Measurement Equipment Digital Test Equipment Digital Panel Meters Tachometers |
| Data Sheet |
|
