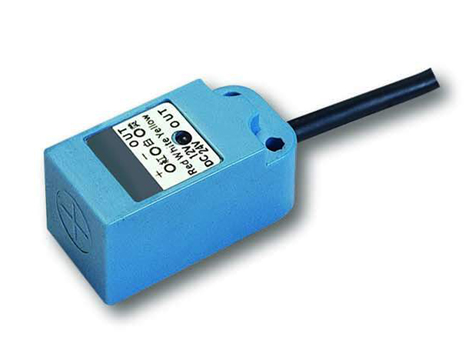

Lutron PX01 (TL18-P)
Proximity Sensor (Operation Voltage DC12-24V)
PROXIMITY SENSOR
Model : PX‑01
| Output method | PNP, NO ( normal open ) |
| Sensing direction | Vertical. |
| Sensing distance | 4 mm. |
| Operating voltage | 10‑30 VDC. |
| Standard sensing object | Iron 18 x 18 x 1 mm. |
| Current consumption | 8 mA, no load. |
| Response frequency | 600 Hz. |
| Output current | 250 mA max. |
| Leakage current | 1.1 mA. |
| Residual voltage | 0.9 VDC. |
| Operating Temperature | -20 to 70 ℃. |
| Operating Humidity | 35 to 95% RH. |
| Wire Dimension | 4.7mm dia x 2m x 3 cores |
| Application | - Sensor for DT-240D panel techometer - Position detector |
| Selling Unit | EACH |
|---|---|
| Model No | PX01 (TL18-P) |
| Brand |
|
| Description | Proximity Sensor (Operation Voltage DC12-24V) |
| Weight | 80g |
| Categories |
Test & Measurement Equipment Digital Test Equipment Digital Metering Accessories |
| Data Sheet |
