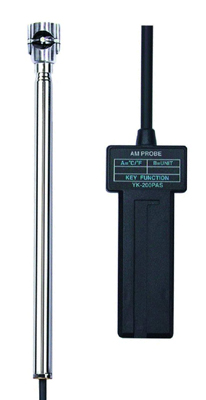

Lutron YK200PAS
Anemometer Probe
ANEMOMETER PROBE - Mini Vane
Model : YK‑200PAS
1. FEATURES
- Anemometer probe (YK‑200PAS) connect with YK‑2001TM will become a professional Mini Vane Anemometer.
- 13 mm dia. metal structure, heavy duty mini vane with telescope probe available for high temp. air velocity measurement.
- Low‑friction vane wheel assures high accuracy measurement.
- Plug and Play function, whenever you plug Anemometer probe (YK‑200PAS) in YK‑2001TM, no calibration procedures are required to be done.
- Multi‑functions for air flow measurement: m/s, km/h, ft/min, knots, mile/h, ℃, ℉
- Thermistor sensor for Temp. measurement fast response time.
- Microprocessor circuit.
- Dual LCD display, show both wind velocity & temp. values.
- Records Maximum and Minimum readings with RECALL facilities.
- Data hold function.
- Auto shut off prolongs battery life.
- RS 232 PC serial interface.
- Two temperature units i.e. ℃ or ℉.
- Powered by 006P DC 9V battery.
- Wide applications: air conditioning, heating systems measure air velocities, wind speed and temperature…etc.
2. SPECIFICATIONS
2‑1 General Specifications
| Circuit | Custom one‑chip microprocessor LSI circuit. |
| Measurement | m/s : 0.4 ‑ 12.0 m/s |
| km/h : 1.4 ‑ 42.0 km/h | |
| mile/h : 0.9 ‑ 27.0 mile/h | |
| knots : 0.8 ‑ 24.0 knots | |
| ft/min : 80 ‑ 2400 ft/min | |
| Temperature | 0 ‑ 50 ℃ / 32 ‑ 122 ℉. |
| Memory Recall | Records Maximum and Minimum readings with RECALL facility. |
| Power off | Manual power off by push button or Auto power off ( Not activated during memory record function ). |
| Data Output | RS 232 PC serial interface. |
| Over load indication | Indicated by “‑‑‑‑”. |
| Sampling Time | Approx. 0.8 second. |
| Operating Temperature | 0 to 50 ℃ ‑ main instrument. 0 to 80 ℃ ‑ probe only. |
| Operating Humidity | Max. 80% RH. |
| Size | Probe : |
| Vane ‑ 13 mm dia. Telescope probe length ‑ Max. 600 mm. |
|
| Accessories Included | Instruction manual ................... 1 PC. Mini Vane Anemometer probe ............ 1 PC. |
2‑2 Electrical Specifications (23 ± 5℃)
A. Anemometer
| Unit | Range | Resolution | Accuracy |
|---|---|---|---|
| m/s | 0.4 ‑ 12.00 m/s | 0.01 m/s | ± (2% + 0.2 d) F.S. |
| km/h | 1.4 ‑ 43.2 km/h | 0.1 km/h | ± (2% + 0.2 d) F.S. |
| mile/h | 0.9 ‑ 26.8 mile/h | 0.1 mile/h | ± (2% + 0.2 d) F.S. |
| knots | 0.8 ‑ 23.3 knots | 0.1 knots | ± (2% + 0.2 d) F.S. |
| ft/min | 80 ‑ 2358 ft/min | 1 ft/min | ± (2% + 20 ft/min) F.S. |
F. S. = full scale
m/s = meters per second km/h = kilometers per hour
ft/min = feet per minute knots = nautical miles per hour
mile/h = miles per hour (international knot)
B. Temperature
| Measuring Range | 0 ℃ to 50 ℃ / 32 ℉ to 122 ℉ |
| Resolution | 0.1 ℃ / 0.1 ℉ |
| Accuracy | ±0.8 ℃ / 1.5 ℉ |
| Selling Unit | EACH |
|---|---|
| Model No | YK200PAS |
| Brand |
|
| Description | Anemometer Probe |
| Width | 13mm |
| Length / Breadth / Depth | 600mm |
| Weight | 29g |
| Categories |
Test & Measurement Equipment Digital Test Equipment Digital Metering Accessories |
| Data Sheet |
|
