Product Details

Model No
Selling Unit EACH
Categories Test & Measurement Equipment
Control Equipment
Angle Transmitters - Linear

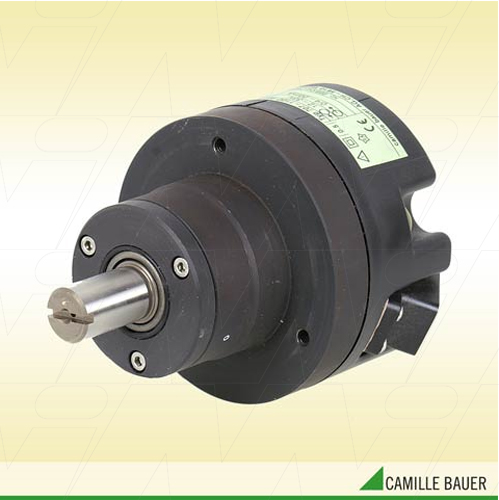

Description Measuring transmitter with contactless, capacitive sensing system for acquiring the angular position of a shaft.

A load-independent DC signal with a range of 4 to 20 mA is read out at the measurement output. Due to its rugged design, it is used primarily in machinery manufacturing and shipbuilding.

  • Patented contactless capacitive system / wear-free
  • Analog measuring method, practically infinite resolution
  • Angle of rotation measuring range:
    0.. 5 to 0.. 270° without gearbox
    0.. 10° through 0.. 1600 revolutions with gearbox
  • Measurement output: 0.. 1 to 0/4.. 20 mA
    2, 3 or 4-wire connection
  • Available with "intrinsically safe" explosion protection per EEx ia IIC T6, can be used in explosive atmospheres
  • Measuring span adjustment with potentiometer / optimized adaptation to desired measuring ranges
  • Output quantity characteristics: linear or as a characteristic V curve
  • Drive shaft can be infinitely rotated: no damage occurs even if the upper limit value of the measuring range is exceeded.
  • Surface mounting device in rugged housing: vibration and shock resistant, suitable for use in machinery manufacturing and shipbuilding
  • Available as GL variant (Germanischer Lloyd) /
    suitable for use on ocean-going vessels
