Product Details

Model No
Selling Unit EACH
Categories Torches & Flashlights
Torches - LED High Power Type
Description XTAR R01-T6 5 mode 800 lumen professional flashlight fitted with CREE X-ML LED. Kit complete 2.6Ah LiIon battery, USB input AC & DC chargers and accessories
Chemistry Lithium Ion
Width 37mm
Length/Breadth/Depth 155mm
Weight 142g

The XTAR R01-T6 torch is fitted with the high output CREE XM-L T6 LED bulb producing an output of 800 lumens providing ultra-bright, white, even light with no black spots.
Made from durable aircraft grade (6061) anodised aluminium alloy, the XTAR R01 offers exceptional brightness for its size. This compact torch is practical and efficient for all-purpose use.


  • Output 800 lumens, 9850 candela, beam range 198 metres
  • Run time up to 195 hours (Dependent on battery type & mode setting used)
  • IPX6 rated for water resistance
  • 1 metre impact resistance
  • Direct plug-in charging
  • 155mm long x 37mm (Head diameter) and 25.5mm (Body diameter)
  • Tailcap switch for mode settings
  • 5 settings including 100% brightness (800lm), 40% (320lm) and 10% (18lm) plus strobe and SOS modes that can be cancelled or recovered at will
  • Approximate run times using the included 2600mAh battery: low 195 hours, medium 3.6 hours, high 1.4 hours.
  • USB cable to direct charge input into torch charge socket so no need to remove battery for recharging. Torch features a built in charge management module.
  • Comes with SAA / MEPS Australian approved 100-240VAC (world voltage) AC adaptor & 12VDC car adaptor both with USB input

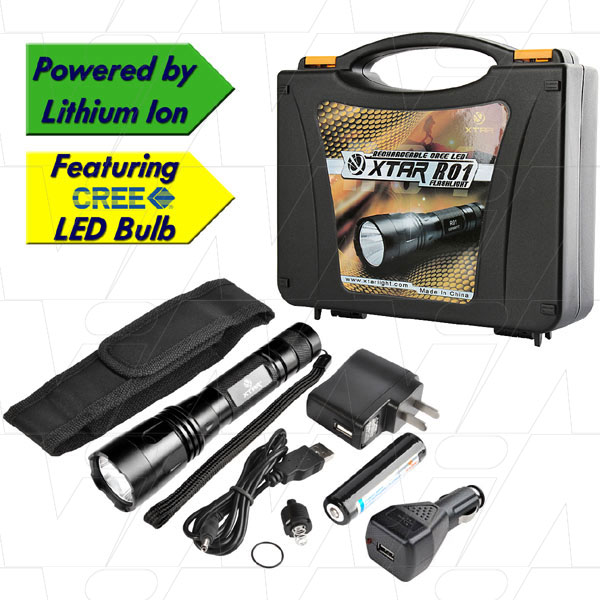

  • Also includes carry case, holster, lanyard, extra switch, extra O-Ring
  • Waterproof to IPX6 standard
  • Digitally regulated output - maintains constant brightness
  • Operating voltage range 2.75V~4.2V
  • Powered by 1 x 18650/18700 size lithium ion battery (2.6Ah TB-18650IC26 protected lithium ion battery with Japan made Sanyo cell inside) included in the package
  • 2 year warranty (not including battery)


  • For extra batteries we recommend using our range of lithium ion protected batteries using the highest grade Japanese brand cells. For this model flashlight we offer rechargeable battery models TB-18650IC26 (Sanyo Li-Ion cell 2.6Ah) or the high capacity TB-18650IC31 (Panasonic LiIon cell 3.1Ah) or the ultra high capacity TB-18650IC34 (Panasonic LiIon cell 3.4Ah).
  • For rechargeable battery charging options please view our range of XTAR chargers.
  • For storing extra batteries we recommend the PBC4 battery case
  • Keep the threads and 'O' ring seals used in LED torches in good condition by applying XTAR Silicone Grease Lubricant


Please note whilst 2 x CR123A size batteries will physically fit this product, use of these two cells or two of any other type in this torch WILL damage the bulb as the battery voltage will be too high for the XM-L bulb. Do not use any cells other than those recommended above.

Click here to download A3 Selection Chart for the complete Xtar Torch Range
