Fuyuang FY0850500

Fuyuang FY0850500

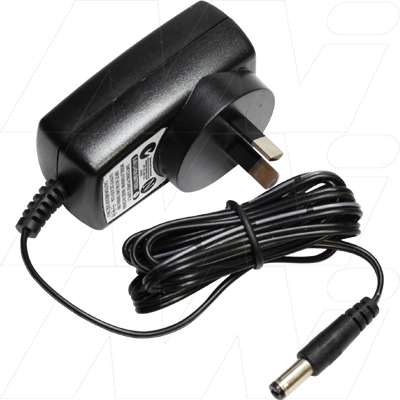

100-240VAC wall mount LiIon 2 cell 8.4V charger output 500mA + 2.1mm DC plug

100-240VAC input lithium ion battery charger for 2 cell 7.4V packs.

Specifications:

  • Input Voltage: 100-240VAC 50/60Hz
  • Output Voltage: 8.4VDC
  • Output Current: 500mA
  • Output Connection: 2.1mm I/D, 5.5mm O/D, centre positive, 1.8m 24AWG lead.
  • LED Indication:
    • Green – Power on and No Load
    • Red – Charging Battery
    • Green – Charge complete

NOTE: For indoor use only.

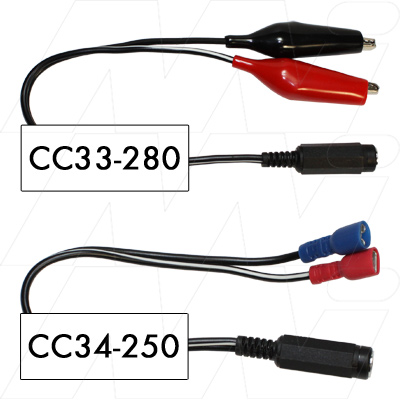

Extra Connector Adaptor:  For optional connector adaptors, see CC33-280 (female 2.1mm DC plug to alligator clips) or CC34-250 (female 2.1mm DC plug to female 6.35mm dual spade terminals). Connector adaptors sold separately.


SHARE:
Selling Unit EACH
Model No FY0850500
Brand Fuyuang brand logo
Description 100-240VAC wall mount LiIon 2 cell 8.4V charger output 500mA + 2.1mm DC plug
Chemistry Lithium Ion (LiIon)
Voltage 8.4V
Size 2S
Width 42.5mm
Height 34.5mm
Length / Breadth / Depth 67mm
Categories Portable Power Product
Battery Chargers / Analysers / Testers
Lithium Ion/Polymer Chargers
LiIon/LiPo Only Chargers
RC Hobby Chargers
NEW LiIon Chargers
Data Sheet Datasheet PDF Thumbnail icon
