Description 100-240VAC Input LiFePO4 4 Cell 14.4V Charger Output 6A + 2.1mm DC Plug
Brand
Size 4S
Width 60mm
Height 35mm
Length/Breadth/Depth 154mm
Comments

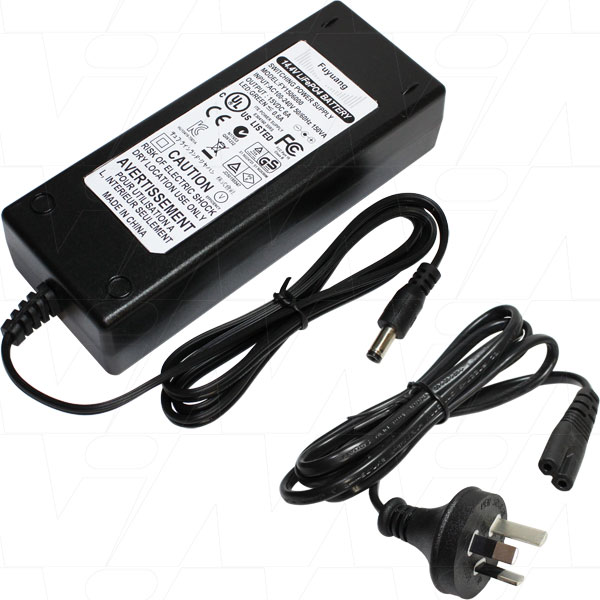

100-240VAC input lithium iron phosphate (LiFePO4) battery charger for 4 cell 12.8V packs.

Specifications:

  • Input Voltage: 100-240VAC 50/60Hz
  • Output Voltage: 14.4VDC
  • Output Current: 6A
  • Output Connection: 2.1mm I/D, 5.5mm O/D, centre positive, 1.0m 18AWG lead.
  • LED Indication:
    • Green – Power on and No Load
    • Red – Charging Battery
    • Green – Charge complete

NOTE: For indoor use only.

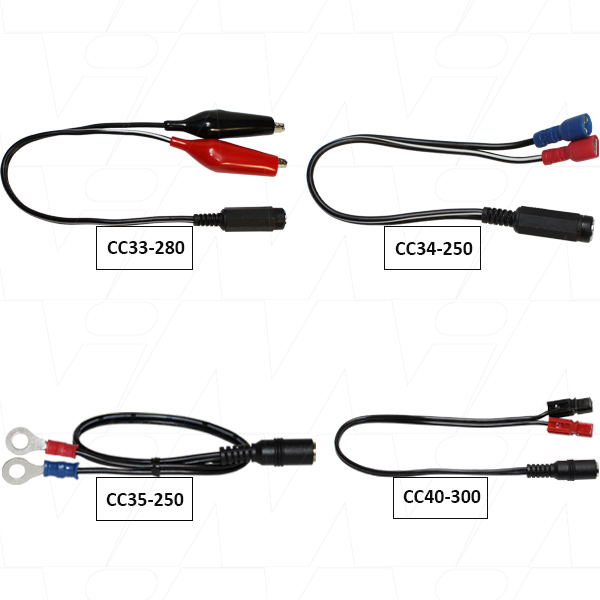

Extra Connector Adaptor:  For optional connector adaptors, see:

  • CC33-280 (female 2.1mm DC plug to alligator clips)
  • CC34-250 (female 2.1mm DC plug to female 6.35mm dual spade terminals)
  • CC35-1800 (female 2.1mm DC plug to low volt spanner connectors)
  • CC40-300 (female 2.1mm DC plug to Anderson Powerpole connectors)

Connector adaptors sold separately.
