Ionix CH-TSB002PCB
Turtle Charger factory programmable charger for most types of rechargeable batteries. 0.1A up to 3A charge rate
The Turtle CH-TSB002PCB is an internal battery charger for OEM designs.

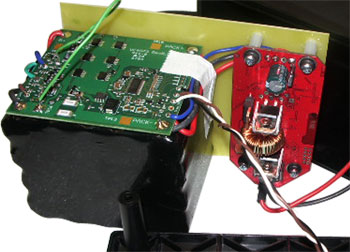

Example of a lithium ion battery pack fitted with a Turtle charger ready for installation.
The charger is suitable for all rechargeable battery chemistries. It is custom programmed by our engineers to suit your design requirements with charging power up to 50 watts available.
Pre-programming includes functions setting charging current and charging voltage, constant current, constant voltage, pre-conditioning, float charging, charge termination methods and setting. Input and output cabling and connector options for all international markets are available upon request.

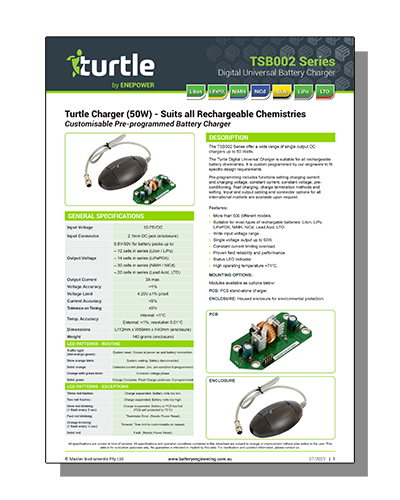

For more information please click on the datasheet link below. A 3D drawing is available from the 2nd datasheet link (3D motion not available in most browsers. Download & save the file onto your computer then open the saved file in Acrobat Reader & click the picture to activate motion).
| Selling Unit | EACH |
|---|---|
| Model No | CH-TSB002PCB |
| Brand |
|
| Description | Turtle Charger factory programmable charger for most types of rechargeable batteries. 0.1A up to 3A charge rate |
| Size | 0.1A - 3A |
| Width | 46mm |
| Height | 26.3mm |
| Length / Breadth / Depth | 91mm |
| Weight | 10g |
| Categories |
Battery Chargers / Analysers / Testers Lead Acid Battery Chargers 6V Battery Chargers 12V Battery Chargers 24V Battery Chargers Lithium Ion/Polymer Chargers Lithium Iron Phosphate Chargers Multi Chemistry Chargers SLA/GEL Type Chargers LiIon/LiPo Type Chargers LiFePO4 Type Chargers NiCd/NiMH Type Chargers NiCd/NiMH Chargers NiCd-NiMH Industrial Battery Chargers RC Hobby Chargers Turtle Chargers |
| Data Sheet |
|
