Product Details

Model No
SHARE US:
Selling Unit EACH
Categories Portable Power Product
Battery Chargers / Analysers / Testers
NiCd/NiMH Chargers
Nickel Metal Hydride (NiMH) Consumer Chargers
New Enecharger Range
Description 16 cell automatic quick charger/discharger for 1-16 AA & AAA NiMH cells. Input 100-240VAC or 12VDC.
Brand
Width 105.4mm
Height 29.2mm
Length/Breadth/Depth 305mm
Weight 600g
Comments

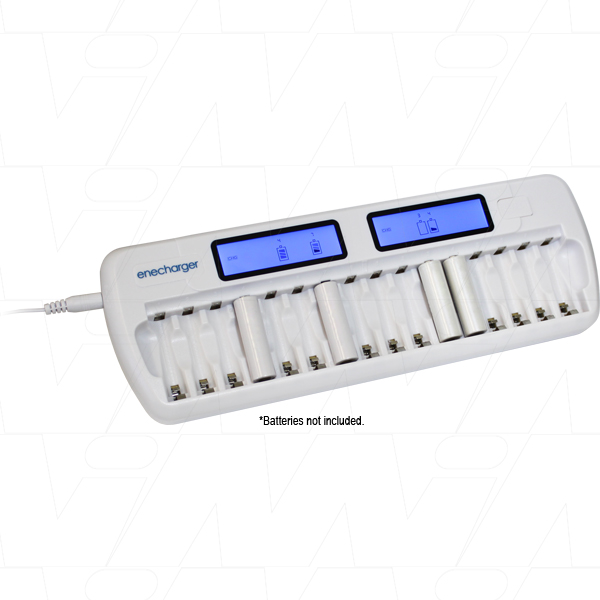

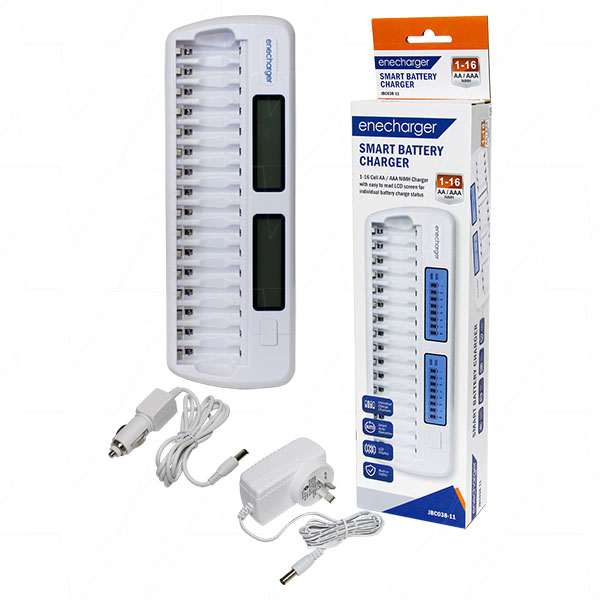

The new JBC038-11 from enecharger is a fully automatic quick charger designed for 1 to 16 Ni-MH AAA & AA cells .

Specially designed for rechargeable batteries used in digital and audio products. The JBC038-11 has the following features:

  • Recharges 1 to 16 pcs of any mix* of AA and AAA batteries at a time.
  • Powered by an external (AS/NZS) approved AC switching mode adaptor with worldwide input (100 - 240VAC 50/60Hz)
  • Includes 12V car lighter adaptor
  • Each cell charges independently of the other
  • 16 independent channels with individual LCD display for proper charge, discharge & trickle charge
  • Intelligent microprocessor controlled
  • With negative delta V cut-off function
  • Refresh discharger function
  • Temperature sensors to avoid battery damage caused by over-heating
  • With mechanical & electrical protection against incorrect polarity
  • Auto detects faulty and non-rechargeable batteries
  • With maximum charging timer control for overcharge protection
  • Charge rate - AA cells 500mA, AAA cells 250mA
  • Discharge rate - 330mA for AAA; 480mA for AA.
  • Once all cells in the charger are discharged then all cells will be put into charge mode automatically.

Battery capacity & charge times

  • AAA 700mAh   4.0 hours
  • AAA 900mAh   5.0 hours
  • AA 1000mAh   2.75 hours
  • AA 1600mAh   4.5 hours
  • AA 2000mAh   5.5 hours
  • AA 2300mAh   6.5 hours
  • AA 2900mAh   8.0 hours

For a selection of NiMH (nickel metal hydride) batteries suitable for this charger please click here.

*Whilst this charger can charge any mix of NiMH AA/AAA batteries at the same time it is not recommended to use a mix of different batteries together in your battery powered equipment.
It is not recommended to charge cells below 700mAh on this charger. Use a lower output current charger for lower capacity cells.

For a faster multi-cell charger, see our model NC8700 (1-8 AA/AAA cells).

Information on Replacement Batteries

General rule for charging NiCd & NiMH batteries.
