Product Details

Model No
SHARE US:
Selling Unit EACH
Categories Portable Power Product
Battery Chargers / Analysers / Testers
Lead Acid Battery Chargers
6V Battery Chargers
12V Battery Chargers
Battery Fighter BCA Series

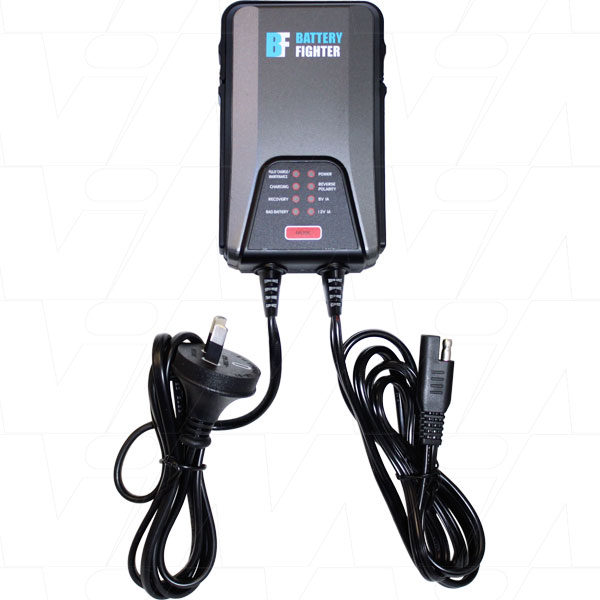

Description Battery Fighter BCA1102S6WR Selectable 6V or 12V 1000mA 9 Step Fully Automatic Lead Acid Battery Charger with maintenance & recovery modes
Voltage 6 / 12V
Brand
Termination Included 500mm cable with alligator clips and 500mm 3A fused cable with ring terminals for permanent attachment
Size 4S
Width 74mm
Height 42mm
Length/Breadth/Depth 122.5mm
Weight 315g
Comments

6V/12V selectable voltage 1000mA 9 Step automatic lead acid (Flooded, Maintenance free, VRLA, AGM, Gel) battery charger recommended for batteries up to 40Ah capacity.

Features:

  • Precise Multi step charging programs:
  • Automatic shut off
  • Reverse polarity protection and spark proof
  • 94VO flame retardant case
  • IP65 Weather proof housing
  • Battery Recovery mode
  • Real Battery maintenance mode, keep battery ready to go
  • LED status indication:
    • RED: Charging
    • GREEN: Charge complete
    • RED and GREEN flashing: Selected charge voltage does not match actual battery voltage
    • RED flashing: Faulty battery
  • SMPS technology

Specifications:

  • AC Input Rating: 100-240VAC 50/60Hz
  • DC Output Rating: for 6VDC / 12VDC sealed lead batteries @ 1000mA
  • Output Termination: alligator clips or ring terminals via Constar/SAE quick disconnect plug
  • Output cable length: 500mm
  • Operating Temperature: -10oC to +45oC
  • Certificates available: CE, GS, SAA, EMC and RoHS

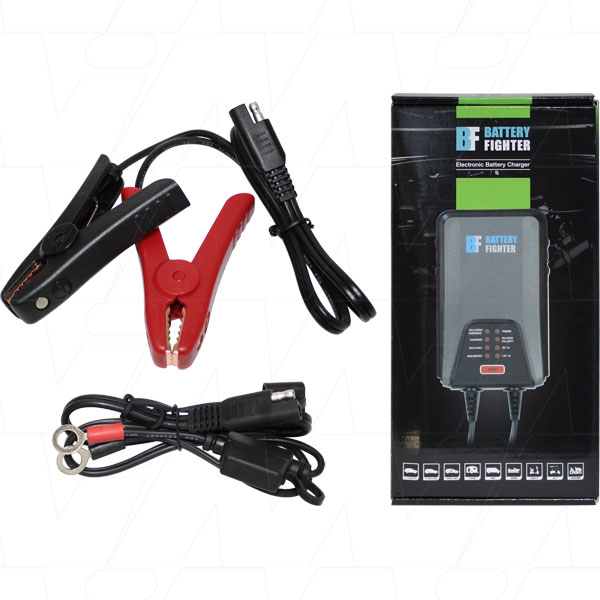

Comes With:

  • BCA1102S6WR Battery Charger
  • Alligator Clips
  • Ring Terminals

Full 3 Year Warranty

This Battery Fighter charger comes with interchangeable leads connectivity via the convenient Constar/SAE quick disconnect termination.

A range of alternative accessory leads are available for this charger. Click the links below for more information.


BFL1
Alligator Clips

BFL2
Ring Terminals

BFL3
3 pin microphone connector

BFL4
DC, Merit, Hella plug

BFL5
4.8mm (F1) female spades

BFL6
6.35mm (F2) female spades

BFL7
BFL extension lead

BFL8
Female DC socket

BFL9
In line voltage reader

BFL10
XLR Connector

BFL11
5V (regulated) USB socket

BFL12
Anderson / torberry connectors
