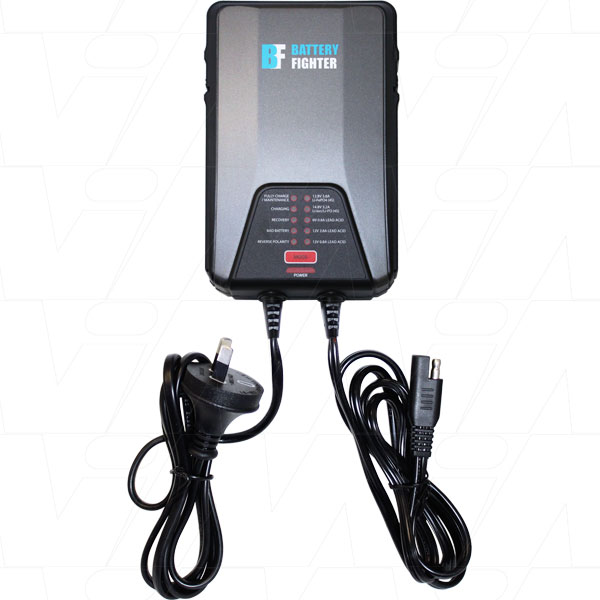

Description Battery Fighter BCA1382S6WR Selectable 800mA/3800mA output Fully Automatic Battery Charger Lead Acid (6V/12V) - Lithium Ion/Polymer (14.4V/14.8V) - Lithium Iron Phosphate (12.8V) batteries
Brand
Termination Included 500mm cable with alligator clips and 500mm 7.5A fused cable with ring terminals for permanent attachment
Size 4S
Width 98.6mm
Height 50.2mm
Length/Breadth/Depth 156mm
Weight 493g
Comments

Suitable for 6V or 12V lead acid (Flooded, Maintenance free, VRLA, AGM, Gel) batteries, 14.4V/14.8V lithium ion or lithium ion polymer batteries, 12.8V lithium iron phospate batteries. Selectable outputs of 800mA or 3800mA

Features:

  • Switchable functions between the different battery chemistries and voltage/current outputs
  • Precise Multi step charging programs:
  • Automatic shut off
  • Reverse polarity protection and spark proof
  • 94VO flame retardant case
  • IP65 Weather proof housing
  • Battery Recovery mode
  • Real Battery maintenance mode to prolong battery life span.
  • LED status indication:
    • RED: Charging
    • GREEN: Charge complete
    • RED and GREEN flashing: Selected charge voltage does not match actual battery voltage
    • RED flashing: Faulty battery
  • SMPS technology

Specifications:

  • AC Input Rating: 100-240VAC 50/60Hz
  • Output Termination: alligator clips or ring terminals via Constar/SAE quick disconnect plug
  • Output cable length: 500mm
  • Operating Temperature: -10oC to +45oC
  • Certificates available: CE, GS, SAA, EMC and RoHS

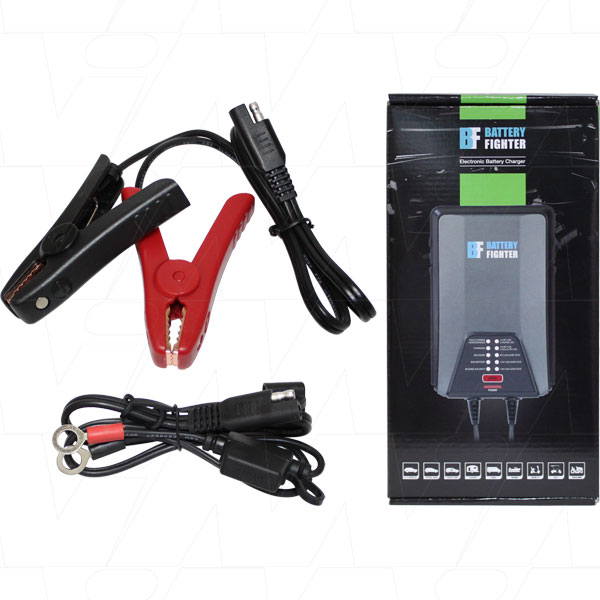

Comes With:

  • BCA1382S6WR Battery Charger
  • Alligator Clips
  • Ring Terminals

Full 3 Year Warranty


This Battery Fighter charger comes with interchangeable leads connectivity via the convenient Constar/SAE quick disconnect termination.

A range of alternative accessory leads are available for this charger. Click the links below for more information.


BFL1
Alligator Clips

BFL2
Ring Terminals

BFL3
3 pin microphone connector

BFL4
DC, Merit, Hella plug

BFL5
4.8mm (F1) female spades

BFL6
6.35mm (F2) female spades

BFL7
BFL extension lead

BFL8
Female DC socket

BFL9
In line voltage reader

BFL10
XLR Connector

BFL11
5V (regulated) USB socket

BFL12
Anderson / torberry connectors
