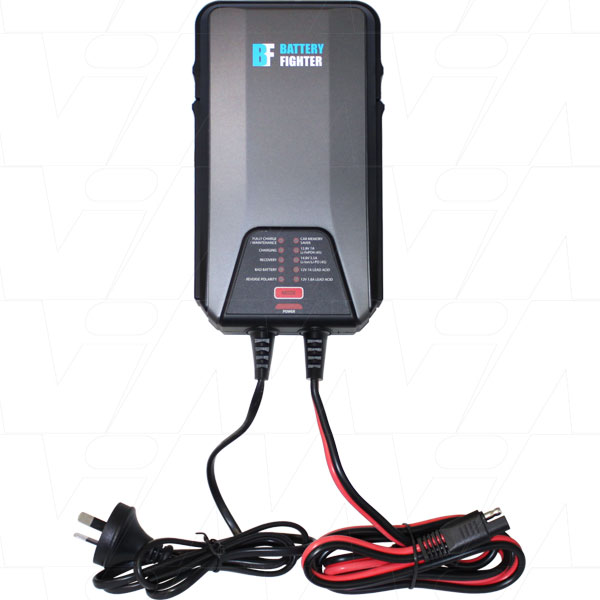

Battery Fighter BCA1702WR

Battery Fighter BCA1702WR

Selectable 1800mA/7000mA fully automatic battery charger (12V Lead Acid) (14.4-14.8V Lithium Ion/Polymer) (12.8V Lithium Iron Phosphate)

Suitable for 12V lead acid (Flooded, Maintenance free, VRLA, AGM, Gel) batteries, 14.4V/14.8V lithium ion or lithium ion polymer batteries, 12.8V lithium iron phospate batteries. Selectable outputs of 1800mA or 7000mA

Also includes memory minder function for disconnection of automotive battery with included OBDII connector cable

Features:

  • Switchable functions between the different battery chemistries and voltage/current outputs
  • Precise Multi step charging programs:
  • Automatic shut off
  • Reverse polarity protection and spark proof
  • 94VO flame retardant case
  • IP65 Weather proof housing
  • Battery Recovery mode
  • Real Battery maintenance mode to prolong battery life span
  • LED status indication:
    • RED: Charging
    • GREEN: Charge complete
    • RED and GREEN flashing: Selected charge voltage does not match actual battery voltage
    • RED flashing: Faulty battery
  • SMPS technology

Specifications:

  • AC Input Rating: 200-240VAC 50/60Hz
  • Output Termination: Alligator clips or OBDII connector via Constar/SAE quick disconnect plug
  • Output cable length: 530mm
  • Operating Temperature: -10oC to +45oC
  • Certificates available: CE, GS, SAA, EMC and RoHS

Comes With:

  • BCA1702WR Battery Charger
  • Heavy Duty Alligator Clips
  • OBD II Memory Saver Cable

Full 3 Year Warranty


SHARE:
Selling Unit EACH
Model No BCA1702WR
Brand Battery Fighter brand logo
Description Selectable 1800mA/7000mA fully automatic battery charger (12V Lead Acid) (14.4-14.8V Lithium Ion/Polymer) (12.8V Lithium Iron Phosphate)
Voltage 12/14V
Termination Included 530mm cable with alligator clips and 530mm DC cable with ODBII connector for memory minder function
Size 4S
Width 106.7mm
Height 59.2mm
Length / Breadth / Depth 192mm
Weight 810g
Categories Portable Power Product
Battery Chargers / Analysers / Testers
Lead Acid Battery Chargers
12V Battery Chargers
Lithium Ion/Polymer Chargers
Lithium Iron Phosphate Chargers
Multi Chemistry Chargers
LiIon/LiPo Type Chargers
LiFePO4 Type Chargers
Battery Fighter BCA Series
Data Sheet Datasheet PDF Thumbnail icon Datasheet PDF Thumbnail icon

Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account

This Battery Fighter charger comes with interchangeable leads connectivity via the convenient Constar/SAE quick disconnect termination.

A range of alternative accessory leads are available for this charger. View products below for more information.

BFL1
BFL1
Alligator Clips
BFL2
BFL2
Ring Terminals
BFL3
BFL3
3 pin microphone connector
BFL4
BFL4
DC, Merit, Hella plug
BFL5
BFL5
4.8mm (F1) female spades
BFL6
BFL6
6.35mm (F2) female spades
BFL7
BFL7
BFL extension lead
BFL8
BFL8
Female DC socket
BFL9
BFL9
In line voltage reader
BFL10
BFL10
XLR Connector
BFL11
BFL11
5V (regulated) USB socket
BFL12
BFL12
Anderson / torberry connectors
