Product Details

Model No
SHARE US:
Selling Unit EACH
Categories Portable Power Product
Battery Chargers / Analysers / Testers
Lead Acid Battery Chargers
12V Battery Chargers
Lithium Ion/Polymer Chargers
Lithium Iron Phosphate Chargers
Multi Chemistry Chargers
LiIon/LiPo Type Chargers
LiFePO4 Type Chargers
Battery Fighter BCA Series

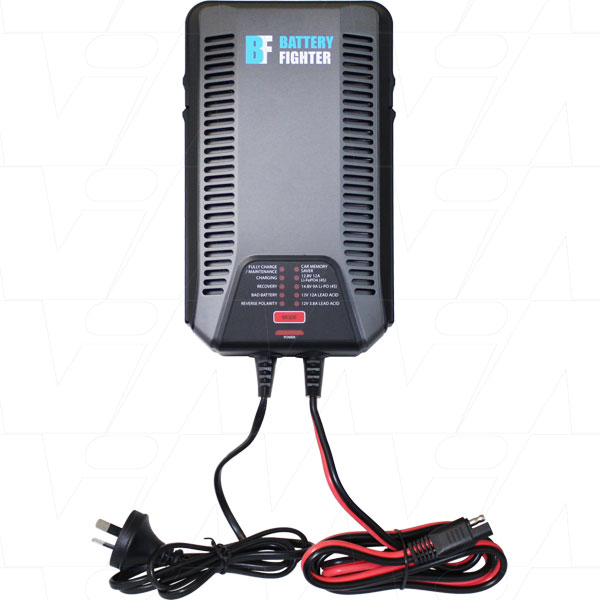

Description Battery Fighter BCA1123 Selectable 3800mA/12000mA output Fully Automatic Battery Charger Lead Acid (12V) - Lithium Ion/Polymer (14.4V/14.8V) - Lithium Iron Phosphate (12.8V) batteries with car memory minder function
Voltage 12V
Brand
Termination Included 530mm cable with alligator clips and 530mm DC cable with ODBII connector for memory minder function
Size 4S
Width 131.4mm
Height 68mm
Length/Breadth/Depth 231mm
Weight 1100g
Comments

Suitable for 12V lead acid (Flooded, Maintenance free, VRLA, AGM, Gel) batteries, 14.4V/14.8V lithium ion or lithium ion polymer batteries, 12.8V lithium iron phosphate batteries. Selectable outputs of 3800mA or 12000mA

Also includes memory minder function for disconnection of automotive battery with included OBDII connector cable

Features:

  • Automatic shut off
  • Reverse polarity protection and spark proof
  • 94VO flame retardant case
  • Battery Recovery mode
  • Real Battery maintenance mode to prolong battery life span
  • LED status indication:
    • RED: Charging
    • GREEN: Charge complete
    • RED and GREEN flashing: Selected charge voltage does not match actual battery voltage
    • RED flashing: Faulty battery
  • SMPS technology

Specifications:

  • AC Input Rating: 200-240VAC 50/60Hz
  • Output Termination: Alligator clips or OBDII connector via Constar/SAE quick disconnect plug
  • Output cable length: 530mm
  • Operating Temperature: -10oC to +45oC
  • Certificates available: CE, GS, SAA, EMC and RoHS

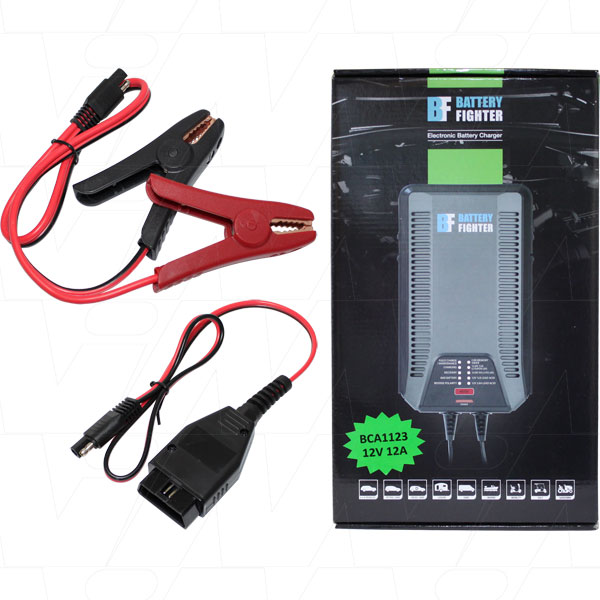

Comes With:

  • BCA1123 Battery Charger
  • Heavy Duty Alligator Clips
  • OBD II Memory Saver Cable

Full 3 Year Warranty


This Battery Fighter charger comes with interchangeable leads connectivity via the convenient Constar/SAE quick disconnect termination.

A range of alternative accessory leads are available for this charger. Click the links below for more information.


BFL1
Alligator Clips

BFL2
Ring Terminals

BFL3
3 pin microphone connector

BFL4
DC, Merit, Hella plug

BFL5
4.8mm (F1) female spades

BFL6
6.35mm (F2) female spades

BFL7
BFL extension lead

BFL8
Female DC socket

BFL9
In line voltage reader

BFL10
XLR Connector

BFL11
5V (regulated) USB socket

BFL12
Anderson / torberry connectors

Data Sheet
