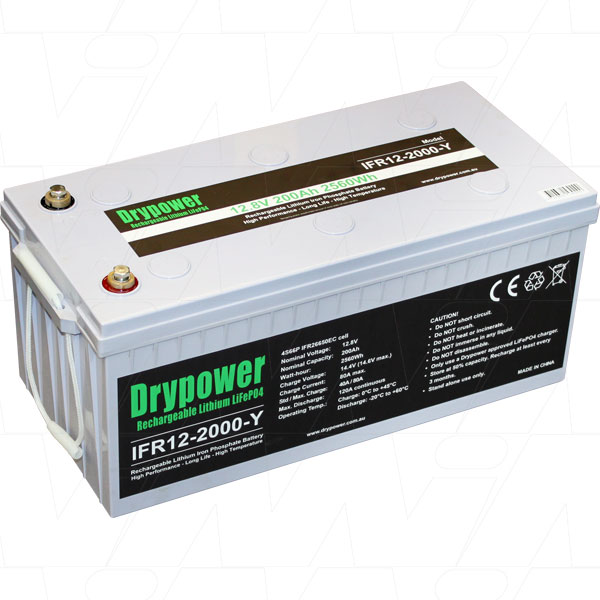

Description Drypower 12.8V 200Ah Lithium Iron Phosphate (LiFePO4) Rechargeable Lithium Battery
Chemistry Lithium Iron Phosphate
Voltage 12.8V
Watt Hour 2560Wh
Nominal Capacity 200Ah
Maximum Continuous
Discharge Current
120A
Brand
Termination M8 Bolt
Width 233mm
Height 220mm
Length/Breadth/Depth 521mm
Weight 27800g
Comments

12V Lithium Iron Phosphate battery. Ideal for sealed lead battery replacement

  • High capacity - rated at 5 hour discharge rate against lead acid rated at the 20 hour rate. For example a 26Ah lead acid battery (20 hour discharge rate) is approximately only 22Ah at the 5 hour discharge rate.
  • Low weight - approximately one third of a similar capacity lead acid battery.
  • Deep cycle - recharges up to 2000 times at 80% depth of discharge. That's 4-8 times better than a lead battery's cycle life dependant on usage conditions.
  • Fast Charge - able to accept higher charging currents all the way to charge termination. No float or trickle required.
  • Inbuilt Protection Circuit Module - protects against over-charging, over-discharging, over-current, external short circuit, incorrect charger use. Beware cheap imitations that lack a protection circuit or only use BMS cell balancing upon charging.



WANT TO KNOW MORE?

Click the links for the downloadable 2016 Drypower Lithium Catalogue and the Drypower Frequently Asked Questions (FAQs).

CAUTION: A dedicated Lithium Iron Phosphate charger is required. Do not use non appropriate chargers or chargers used for other battery chemistries.

We recommend using charger models:



PLEASE NOTE: many sellers new to the lithium battery industry are claiming lithium iron phosphate batteries can be properly charged with lead battery chargers. This is incorrect. Please use chargers specifically designed for charging lithium iron phosphate batteries or batteries may not fully charge and/or battery life may be significantly reduced.

Additionally, this battery contains a lithium ion battery protection circuit module (PCM). The PCM further enhances the safe usage of this battery in comparison to non-protected rechargeable lithium batteries. We recommend when this battery is used in multiple packs for series or parallel connections that individual chargers are used for each battery. Charging multiple battery arrays as a single battery pack may trigger the PCM inside one or more of the batteries that could lead to capacity miss-match in the array that could reduce performance of the complete battery pack array. Please consult us for further information and technical advice.

Click here to view our range of dedicated solar controllers/chargers suitable for both 12V and 24V LiFEPO4 batteries

Shipping restrictionsClass 9 Dangerous Goods icon

SHIPPING RESTRICTIONS APPLY
Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.

UN3480 FULLY DECLARED CLASS 9 DANGEROUS GOODS LITHIUM ION BATTERIES - Contains cells/batteries packed in accordance with Packing Instruction P903 from ADG 7.7 & IMDG Code 2020. Surcharges will apply.

Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.
