XTAR VP4 Plus

XTAR VP4 Plus

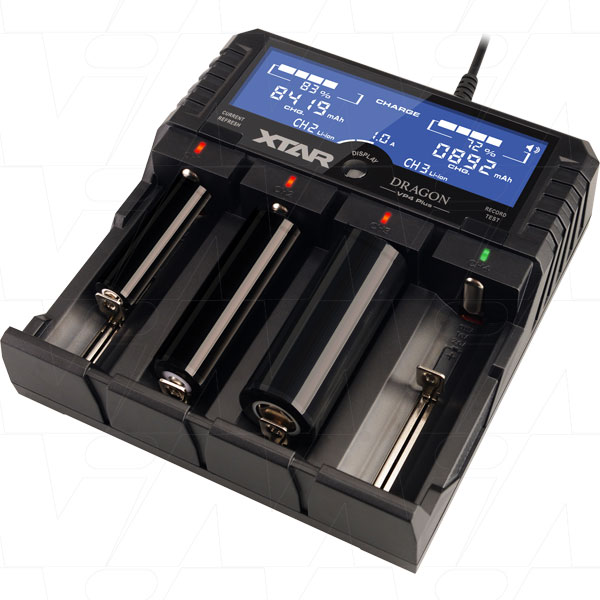

DRAGON 1-4 cell Lithium Ion/NiMH battery charger with real time LCD display, battery internal resistance testing function and USB output

XTAR VP4 Plus DRAGON intelligent multi-functional LiIon & NiMH battery charger featuring:

  • Battery charging - compatible with almost all sizes of single cell LiIon or NiMH/NiCd batteries.
  • Battery charging - includes charge port for 11.1V/3S battery packs.
  • Battery test mode - Charge > Discharge > Charge. Accurately test real capacity of your batteries.
  • Battery refresh mode - Discharge > Charge. Eliminate memory effect of NiMH batteries.
  • Powerbank (USB output charging) - 2.4A max output suitable for charging 5V USB devices.



Charging Parameters:

  • Input: 12VDC 3.0A
  • 0.5A Constant Current Output: 500mA x 4
  • 1.0A Constant Current Output: 1000mA x 4
  • 2.0A Constant Current Output: 2000mA x 4
  • Cut-off Voltage:
    • LiIon: 4.2V±0.05V
    • NiMH/NiCd: 1.45V±0.1V
  • USB output: 5VDC 2.4A max.
  • 11.1V/3S battery pack charging: 1000mA
  • Operating temp: 0-40°C



Other Features:

  • Three user selectable charge current options: 0.5A, 1.0A or 2.0A.
  • Charge up to four 32650/D size batteries at the same time.
  • Using the test function with the included test cables, determine battery's internal resistance - lower internal resistance can equal better performance.
  • Built in micro memory card automatically saves up to 64 test records of discharging and charging capacity after each TEST cycle.
  • Select REFRESH mode to eliminate any existing memory effect in NiMH batteries.
  • Automatically selects suitable charging current for USB devices connected to the VP4 Plus USB output port.
  • Charge single cell batteries, battery packs and USB devices SIMULTANEOUSLY when the VP4 Plus is connected to mains power.
  • High quality LCD screen displays heaps of information: charging current, battery status, battery capacity percentage, battery types and channels, battery voltage and resistance and much more.
  • Alerts sound when there is an error or charging/test process is complete.
  • Easy to use, consumer friendly user interface.
  • Innovative design allows maximum heat dissipation during fast charging.
  • 0V battery activation.
  • Reverse polarity and short circuit protection, flame retardant case, temperature monitoring, extra low safe input voltage.
  • 2 years warranty.

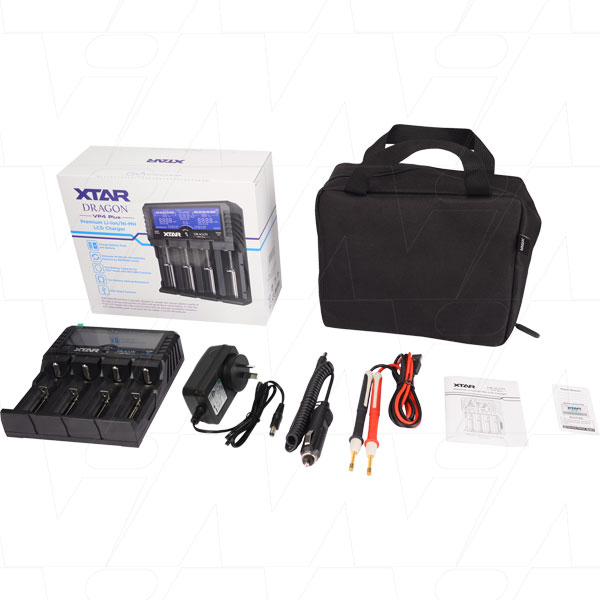

The VP4 Plus comes with:
  • VP4 Plus charger
  • Charger pouch
  • 1 pair test probes
  • 12VAC 3A adaptor
  • 12VDC 3A car adaptor
  • Manual and warranty card


SHARE:
Selling Unit EACH
Model No VP4 Plus
Brand XTAR brand logo
Description DRAGON 1-4 cell Lithium Ion/NiMH battery charger with real time LCD display, battery internal resistance testing function and USB output
Size 2A
Width 147mm
Height 40mm
Length / Breadth / Depth 158mm
Weight 345g
Categories Battery Chargers / Analysers / Testers
Single Cell Testers
Lithium Ion/Polymer Chargers
Consumer LiIon Chargers
Lithium Ion Single Cell Chargers
XTAR Battery Chargers
Data Sheet Datasheet PDF Thumbnail icon
