Product Details

Model No
SHARE US:
Selling Unit EACH
Categories Portable Power Product
Battery Chargers / Analysers / Testers
Lithium Iron Phosphate Chargers
LiFePO4 Only Chargers
RC Hobby Chargers
NEW LiIon Chargers
Description 100-240VAC Input LiFePO4 4 Cell 14.4V Charger Output 9.9A + 15-45 Powerpole Plug
Brand
Size 4S
Width 80mm
Height 46mm
Length/Breadth/Depth 178mm
Weight 675g
Comments

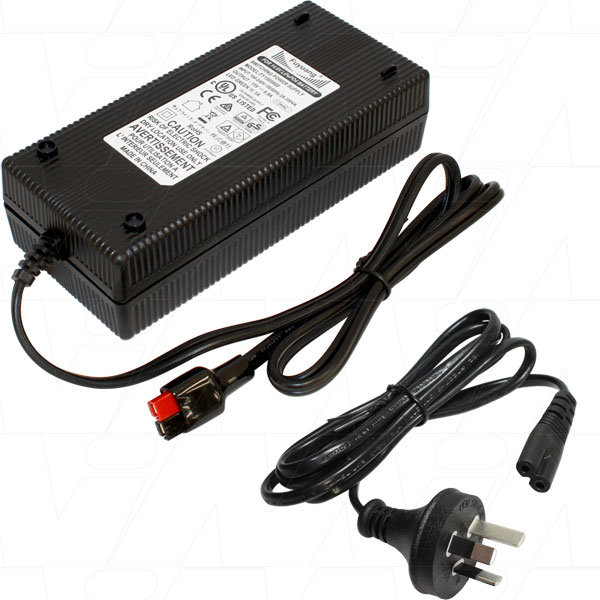

100-240VAC input lithium iron phosphate (LiFePO4) battery charger for 4 cell 14.6V packs.

Specifications:

  • Input Voltage: 100-240VAC 50/60Hz
  • Output Voltage: 15VDC
  • Output Current: 9.9A
  • Output Connection: 15-45 Powerpole Plug, 1.0m 16AWG lead.
  • LED Indication

NOTE: For indoor use only.

Matching connectors available:  For optional matching connectors (sold separately), see:

  • BFL12 (Anderson Powerpole 15-45 / Torberry to Constar / SAE quick disconnect two pin plug)
  • CE081 (Anderson Powerpole 15-45 / Torberry on 40A rated silicon leads)
  • CE081E (Anderson Powerpole 15-45 / Torberry to M6 6mm ring terminals on 40A rated silicon leads)
  • CC41-250 (Anderson Powerpole 15-45 / Torberry to T-Bar)
  • PT4405 (Anderson Powerpole 15-45 / Torberry 30A rated housing and contacts set)
Data Sheet
