Product Details

Model No
SHARE US:
Selling Unit EACH
Categories Portable Power Product
Batteries Primary (Non-Rechargeable)
Lithium Batteries
Lithium Thionyl Chloride Batteries
Lithium Thionyl Chloride Cylindrical Bobbin-MBU type
Memory Back Up (MBU) Batteries
Description Fanso ER14505H AA size 3.6V 2700mAh High Capacity Lithium Thionyl Chloride Battery - Bobbin Type (MBU)
Chemistry Lithium Thionyl Chloride
Voltage 3.6V
Watt Hour 9.36Wh
Nominal Capacity 2.7Ah
Maximum Continuous
Discharge Current		 50mA
Brand
Size AA
Width 14.5mm
Height 50.5mm
Weight 18g
Inner Quantity 30
Outer Quantity 600
Comments

ER14505H primary lithium battery.

Wuhan Fanso high capacity range.

Features:

  • Long shelf life: self discharge rate less than 1% at 25°C.
  • High energy density (700Wh/kg).
  • Long operating life.
  • Stainless steel container and end caps.
  • Wide temperature range: -55ºC ~ +85ºC.
  • Hermetic glass-to-metal sealing.
  • Non-flammable electrolyte.
  • Compliant with IEC86-4 safety standard.
  • UL Component Recognition MH46165.
  • High and stable operating voltage.

Suitable for applications including:
  • Utility metering
  • Alarm and security devices
  • Memory backup power
  • Professional electronics
  • GPS tracking system
  • Military system
  • Automotive electronics
  • Real-time clock

Store in a cool dry place not exceeding +30ºC.

Click here to view the 2021 Fanso Catalogue

Shipping restrictions

SHIPPING RESTRICTIONS APPLY
Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.

NON DG UN3090 LITHIUM METAL BATTERIES - Contains cells/batteries exempted from ADG 7.7 & IMDG Code 2020 using Special Provision 188.

Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.

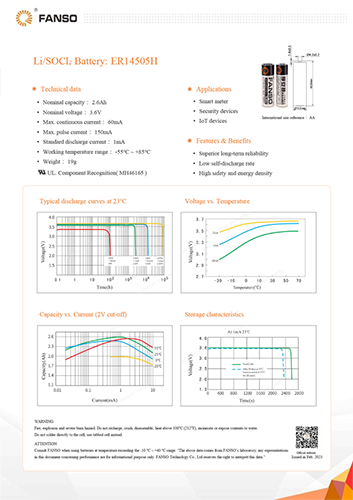

Data Sheet
