Product Details

Model No
SHARE US:
Selling Unit EACH
Categories Portable Power Product
Batteries Primary (Non-Rechargeable)
Lithium Batteries
Lithium Thionyl Chloride Batteries
Lithium Thionyl Chloride Cylindrical Bobbin-MBU type
Description Fanso ER26500H C size 3.6V 9000mAh High Capacity Lithium Thionyl Chloride Battery - Bobbin Type
Application Memory Back Up (MBU)
Chemistry Lithium Thionyl Chloride
Voltage 3.6V
Watt Hour 32.4Wh
Nominal Capacity 9Ah
Maximum Continuous
Discharge Current
100mA
Brand
Size C
Width 26.2mm
Height 50mm
Weight 53g
Inner Quantity 48
Outer Quantity 240
Comments

ER26500H primary lithium battery.

Wuhan Fanso high capacity range.

Features:

  • Long shelf life: self discharge rate less than 1% at 25°C.
  • High energy density (700Wh/kg).
  • Long operating life.
  • Stainless steel container and end caps.
  • Wide temperature range: -55ºC ~ +85ºC.
  • Hermetic glass-to-metal sealing.
  • Non-flammable electrolyte.
  • Compliant with IEC86-4 safety standard.
  • UL Component Recognition MH46165.
  • High and stable operating voltage.

Suitable for applications including:
  • Utility metering
  • Alarm and security devices
  • Memory backup power
  • Professional electronics
  • GPS tracking system
  • Military system
  • Automotive electronics
  • Real-time clock

Store in a cool dry place not exceeding +30ºC.

Click here to view the 2021 Fanso Catalogue

Shipping restrictionsClass 9 Dangerous Goods icon

SHIPPING RESTRICTIONS APPLY
Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.

UN3090 FULLY DECLARED CLASS 9 DANGEROUS GOODS LITHIUM METAL BATTERIES - Contains cells/batteries packed in accordance with Packing Instruction P903 from ADG 7.7 & IMDG Code 2020. Surcharges will apply

Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.

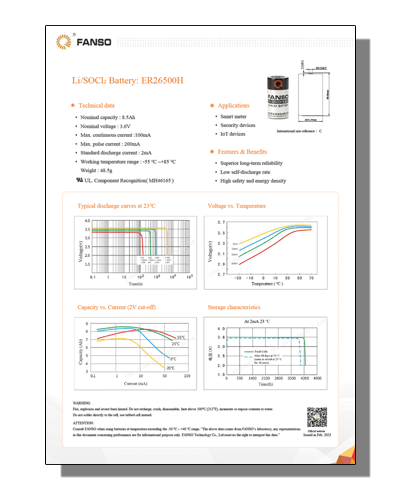

Data Sheet
