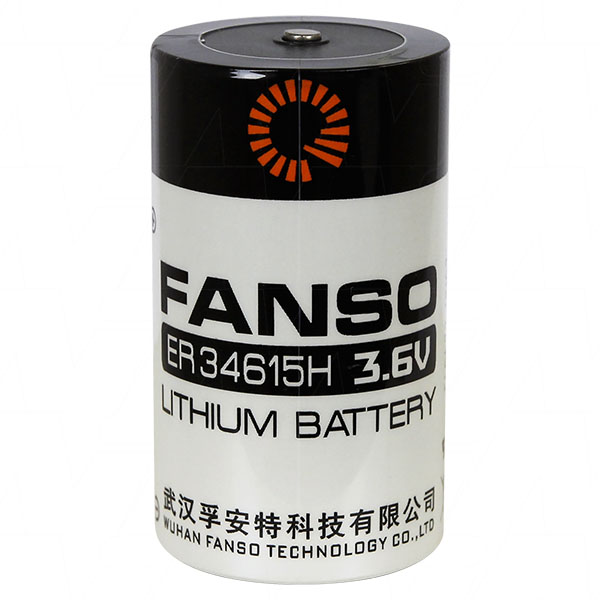

Fanso ER34615H
Fanso ER34615H D size 3.6V 19000mAh High Capacity Lithium Thionyl Chloride Battery - Bobbin Type
ER34615H primary lithium battery.
Wuhan Fanso high capacity range.
Features:
- Long shelf life: self discharge rate less than 1% at 25°C.
- High energy density (700Wh/kg).
- Long operating life.
- Stainless steel container and end caps.
- Wide temperature range: -55ºC ~ +85ºC.
- Hermetic glass-to-metal sealing.
- Non-flammable electrolyte.
- Compliant with IEC86-4 safety standard.
- UL Component Recognition MH46165.
- High and stable operating voltage.
Suitable for applications including:
- Utility metering
- Alarm and security devices
- Memory backup power
- Professional electronics
- GPS tracking system
- Military system
- Automotive electronics
- Real-time clock
Store in a cool dry place not exceeding +30ºC.
SHARE:
| Selling Unit | EACH |
|---|---|
| Model No | ER34615H |
| Brand |
|
| Description | Fanso ER34615H D size 3.6V 19000mAh High Capacity Lithium Thionyl Chloride Battery - Bobbin Type |
| Application | Memory Back Up (MBU), IOT Devices, Smart Meters, Security |
| Chemistry | Lithium Thionyl Chloride |
| Voltage | 3.6V |
| Watt Hour | 68.4Wh |
| Nominal Capacity | 19Ah |
| Maximum Continuous Discharge Current | 150mA |
| Maximum Pulse Discharge Current | 300mA |
| Size | D |
| Width | 34.2mm |
| Height | 61.5mm |
| Weight | 100g |
| Categories |
Portable Power Product Batteries Primary (Non-Rechargeable) Lithium Batteries Lithium Thionyl Chloride Batteries Lithium Thionyl Chloride Cylindrical Bobbin-MBU type |

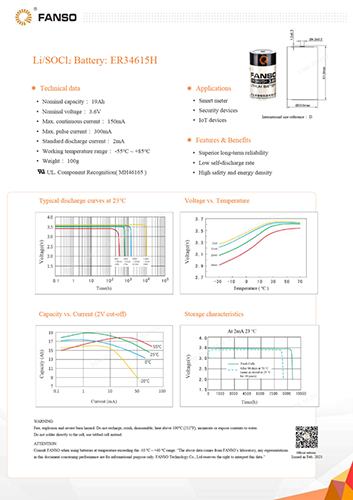

| Data Sheet |
|
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
SHIPPING RESTRICTIONS APPLY
Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.
UN3090 FULLY DECLARED CLASS 9 DANGEROUS GOODS LITHIUM METAL BATTERIES - Contains cells/batteries packed in accordance with Packing Instruction P903 from ADG 7.7 & IMDG Code 2020. Surcharges will apply.
Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.
