Product Details

Model No
SHARE US:
Selling Unit EACH
Categories Portable Power Product
Batteries Primary (Non-Rechargeable)
Lithium Batteries
Lithium Thionyl Chloride Batteries
Lithium Thionyl Chloride Batteries Cylindrical Spiral Wound Hi-Rate Type
Description Fanso ER26500M C size 3.6V 6000mAh High Power Lithium Thionyl Chloride Battery - Spiral Wound Type
Application Memory Back Up (MBU)
Chemistry Lithium Thionyl Chloride
Voltage 3.6V
Watt Hour 21.6Wh
Nominal Capacity 6Ah
Maximum Continuous
Discharge Current		 1.5A
Brand
Size C
Width 26.2mm
Height 50mm
Weight 57g
Comments

ER26500M primary lithium battery.

Wuhan Fanso high power range.

Features:

  • Long shelf life: self discharge rate less than 1% at 25°C.
  • High energy density (700Wh/kg).
  • Long operating life.
  • Stainless steel container and end caps.
  • Wide temperature range: -55ºC ~ +80ºC.
  • Hermetic glass-to-metal sealing.
  • Non-flammable electrolyte.
  • Compliant with IEC86-4 safety standard.
  • UL Component Recognition MH46165.
  • High and stable operating voltage.

Suitable for applications including:
  • Active RFID tags
  • Alarm and security systems
  • Smoke detectors
  • Memory backup power
  • Medical
  • Professional electronics
  • Real time clock

Store in a cool dry place not exceeding +30ºC.

Click here to view the 2021 Fanso Catalogue

Shipping restrictionsClass 9 Dangerous Goods icon

SHIPPING RESTRICTIONS APPLY
Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.

UN3090 FULLY DECLARED CLASS 9 DANGEROUS GOODS LITHIUM METAL BATTERIES - Contains cells/batteries packed in accordance with Packing Instruction P903 from ADG 7.7 & IMDG Code 2020. Surcharges will apply.

Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.

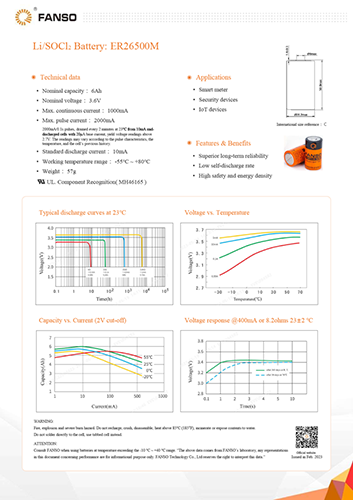

Data Sheet
