Model No
SHARE US:
Selling Unit EACH
Categories Portable Power Product
Batteries Primary (Non-Rechargeable)
Lithium Batteries
Lithium Thionyl Chloride Batteries
Lithium Thionyl Chloride Batteries Cylindrical Spiral Wound Hi-Rate Type

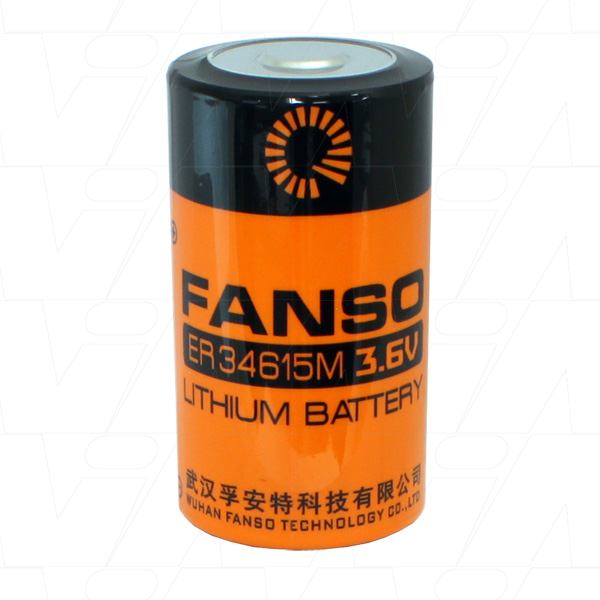

Description Fanso ER34615M D size 3.6V 14000mAh High Power Lithium Thionyl Chloride Battery - Spiral Wound Type
Application Memory Back Up (MBU)
Chemistry Lithium Thionyl Chloride
Voltage 3.6V
Watt Hour 50.4Wh
Nominal Capacity 14Ah
Maximum Continuous
Discharge Current
1800mA
Brand
Size D
Width 34.2mm
Height 61.5mm
Weight 109g
Comments

ER34615M primary lithium battery.

Wuhan Fanso high power range.

Features:

  • Long shelf life: self discharge rate less than 1% at 25°C.
  • High energy density (700Wh/kg).
  • Long operating life.
  • Stainless steel container and end caps.
  • Wide temperature range: -55ºC ~ +80ºC.
  • Hermetic glass-to-metal sealing.
  • Non-flammable electrolyte.
  • Compliant with IEC86-4 safety standard.
  • UL Component Recognition MH46165.
  • High and stable operating voltage.

Suitable for applications including:
  • Active RFID tags
  • Alarm and security systems
  • Smoke detectors
  • Memory backup power
  • Medical
  • Professional electronics
  • Real time clock

Store in a cool dry place not exceeding +30ºC.



Click Here to view Click Here to view the 2018 Fanso Catalogue

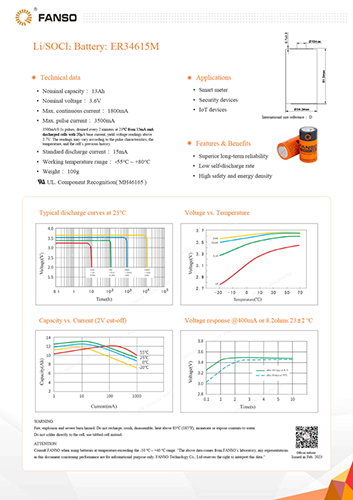

Data Sheet
